DTS24F17-06SB by te connectivity / deutsch

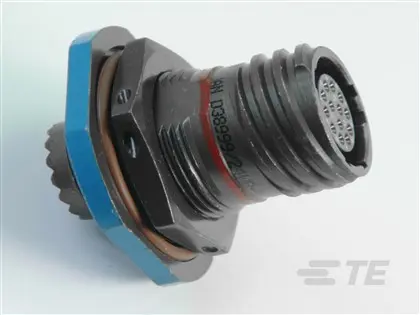

Image is representational - see manufacturer specifications

TE Connectivity / Deutsch Authorized Distributor

DTS24F17-06SB

JAM NUT RECEPTACLE

+ see all

View Datasheet Accessories Notify Me

RoHS Compliant
Bag Packaging
Certificate of Compliance
Description +
JAM NUT RECEPTACLE
Search Keywords: DTS24F1706SB
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS24F17-06SB
  • Alias/AKA:
    YDTS24F17-06SB0000
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694040
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Wire Size:
    14 – 12 AWG, 2.08 – 3.31 mm²
  • Number of Signal Positions:
    0
  • Connector System:
    Cable-to-Panel
  • Mating Alignment Type:
    Keyed
  • Mating Retention:
    With
  • Preloaded:
    No
  • Connector Style:
    Receptacle
  • Shell Material:
    Aluminum
  • Hermetically Sealed:
    No
  • Contact Type:
    Socket
  • Shielded:
    Yes
  • Product Type:
    Connector
  • Polarization Code:
    B
  • Wire/Cable Size:
    12 – 14 AWG, 4. – 2.5 mm²
  • Contact Current Rating (Max):
    23 A
  • Circuit Application:
    Power & Signal
  • Number of Power Positions:
    12
  • Contact Layout Arrangement:
    17 – 6
  • Reverse Gender:
    No
  • Connector Mounting Type:
    Panel
  • Sealable:
    Yes
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Insulation Material:
    Hard Dielectric/Silicone
  • Alignment Keyed:
    Clocking
  • Number of Positions:
    12
  • Shell Size:
    E (17)
  • Shell Type:
    Jam Nut Receptacle
  • Shell Plating Material:
    Electroless Nickel
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is DTS24F17-06SB RoHS compliant?
Yes, DTS24F17-06SB is RoHS compliant.
What is the lead time for DTS24F17-06SB?
The standard lead time for DTS24F17-06SB is approximately 9 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
9 Weeks can ship 12/4/26
Backorder
Price (USD)
Qty
Unit Price
13
$744.75
25
$395.60
38
$265.74
50 +
$260.43
