DTS20W25-61SB[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

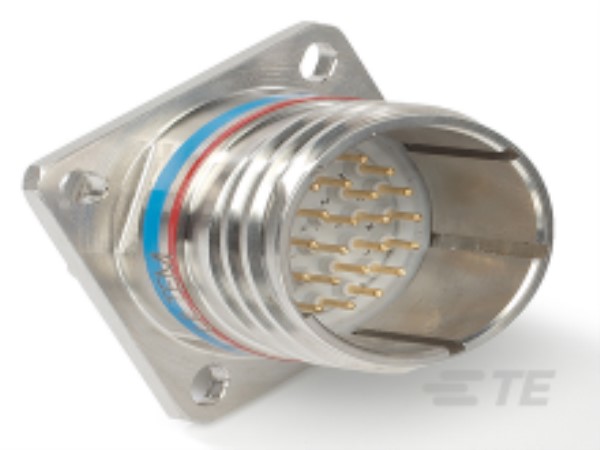

DTS20W25-61SB[V001]

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: DTS20W2561SBV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS20W25-61SB[V001]
  • Alias/AKA:
    YDTS20W25-61SBV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Product Type:
    Connector
  • Shielded:
    Yes
  • Keying & Polarized Position Locations:
    B
  • Connector System:
    Wire-to-Panel
  • Weight:
    52.4 g, .1157 lb
  • Sealable:
    Yes
  • Connector Mounting Type:
    Panel
  • Connector Style:
    Receptacle
  • Panel Mount Feature Type:
    Square Flange
  • Panel Mount Feature:
    With
  • Peripheral Seal Material:
    Silicone
  • Number of Positions:
    61
  • Contact Quantity (Size 20):
    61
  • Shell Plating Material:
    Cadmium, O.D.
  • Factory Installed Backshell:
    No
  • Number of Signal Positions:
    61
  • Operating Temperature Range:
    -65 – 175 °C, -85 – 347 °F
  • Contact Current Rating (Max):
    7.5 A
  • Insulation Material:
    Hard Dielectric/Silicone
  • Contact Type:
    Socket
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Fluid Resistance:
    Yes
  • Circuit Application:
    Signal
  • Flange:
    Square Flange
  • Operating Voltage:
    600 VAC, 850 VDC
  • Hermetically Sealed:
    No
  • Number of Power Positions:
    61
  • Positions Unloaded:
    All
  • O-Ring Material:
    Silicone
  • Wire Size:
    24 – 20 AWG, .2 – .52 mm²
  • Keying:
    Keyway Polarization B
  • Position Locations Omitted:
    All
  • Assembly Length:
    1.24 in, 31.5 mm
  • Alignment Keyed:
    Clocking
  • Environmental Protection:
    Yes
  • Packaging Quantity:
    1
  • Shell Material:
    Aluminum
  • Reverse Gender:
    No
  • Mating Alignment Type:
    Keyed
  • Accepts Wire Insulation Diameter Range:
    .04 – .083 in, 1.02 – 2.11 mm
  • Wire/Cable Size:
    24 – 20 AWG, .2 – .52 mm²
  • Position Keyed:
    B
  • Entry Style:
    Rear Insertion
  • Mating Retention:
    With
  • Contact Layout:
    25 – 61
  • Mating Retention Type:
    Triple Start Threaded
  • Feedthrough Type:
    No
  • Contact Layout Arrangement:
    25 – 61
  • Shell Size:
    J (25)
  • Shell Type:
    Square Flange Receptacle
  • Environmental Protection Type:
    Elastomer Sealed
  • Polarization Code:
    B
  • Preloaded:
    No
  • Voltage:
    1800 Vrms
  • Durability Rating:
    500 Cycles
  • Assembly Type:
    Electrical Connector
  • Shell Base Material:
    Aluminum 6061-T6
  • Circular Connector Shell Size:
    25
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
65 Weeks can ship 8/25/27
Backorder
Price (USD)
Qty
Unit Price
13
$922.92
25
$490.24
38
$329.31
50 +
$322.73
Click for Quote
Log in to unlock special pricing
