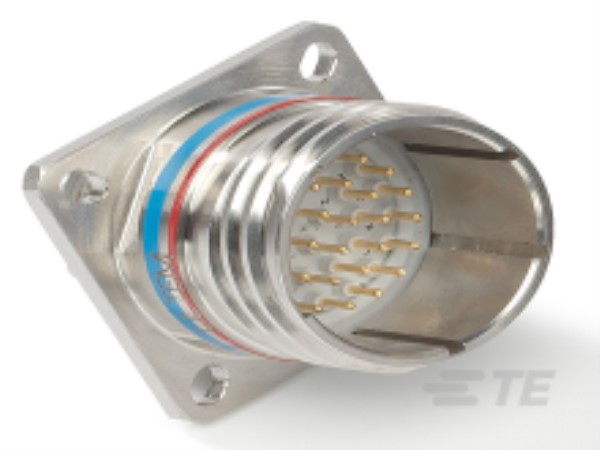

DTS20W17-26PA[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

DTS20W17-26PA[V001]

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: DTS20W1726PAV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS20W17-26PA[V001]
  • Alias/AKA:
    YDTS20W17-26PAV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Fluid Resistance:
    Yes
  • Contact Layout:
    17 – 26
  • Shell Size:
    E (17)
  • Packaging Quantity:
    1
  • Contact Current Rating (Max):
    7.5 A
  • Operating Voltage:
    600 VAC, 850 VDC
  • Position Locations Omitted:
    All
  • Durability Rating:
    500 Cycles
  • Position Keyed:
    A
  • Polarization Code:
    A
  • Connector System:
    Wire-to-Panel
  • Circuit Application:
    Signal
  • Weight:
    25.3 g, .0558 lb
  • Mating Retention Type:
    Triple Start Threaded
  • Environmental Protection:
    Yes
  • Flange:
    Square Flange
  • Environmental Protection Type:
    Elastomer Sealed
  • Connector Style:
    Receptacle
  • Connector Mounting Type:
    Panel
  • Panel Mount Feature:
    With
  • Assembly Type:
    Electrical Connector
  • Contact Quantity (Size 20):
    26
  • Feedthrough Type:
    No
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Wire Size:
    24 – 20 AWG, .2 – .52 mm²
  • Sealable:
    Yes
  • Number of Positions:
    26
  • Voltage:
    1800 Vrms
  • Reverse Gender:
    No
  • Product Type:
    Connector
  • Shell Plating Material:
    Cadmium, O.D.
  • Alignment Keyed:
    Clocking
  • Operating Temperature Range:
    -65 – 175 °C, -85 – 347 °F
  • Assembly Length:
    1.24 in, 31.5 mm
  • O-Ring Material:
    Silicone
  • Shell Type:
    Square Flange Receptacle
  • Number of Power Positions:
    26
  • Insulation Material:
    Hard Dielectric/Silicone
  • Keying:
    Keyway Polarization A
  • Contact Layout Arrangement:
    17 – 26
  • Keying & Polarized Position Locations:
    A
  • Peripheral Seal Material:
    Silicone
  • Factory Installed Backshell:
    No
  • Accepts Wire Insulation Diameter Range:
    .04 – .083 in, 1.02 – 2.11 mm
  • Contact Type:
    Pin
  • Panel Mount Feature Type:
    Square Flange
  • Shell Material:
    Aluminum
  • Preloaded:
    No
  • Hermetically Sealed:
    No
  • Entry Style:
    Rear Insertion
  • Mating Alignment Type:
    Keyed
  • Positions Unloaded:
    All
  • Number of Signal Positions:
    26
  • Mating Retention:
    With
  • Wire/Cable Size:
    24 – 20 AWG, .2 – .52 mm²
  • Shielded:
    Yes
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
25
65 Weeks can ship 8/23/27
Backorder
Price (USD)
Qty
Unit Price
25
$552.83
50
$282.36
75
$192.20
100 +
$188.36
Click for Quote
