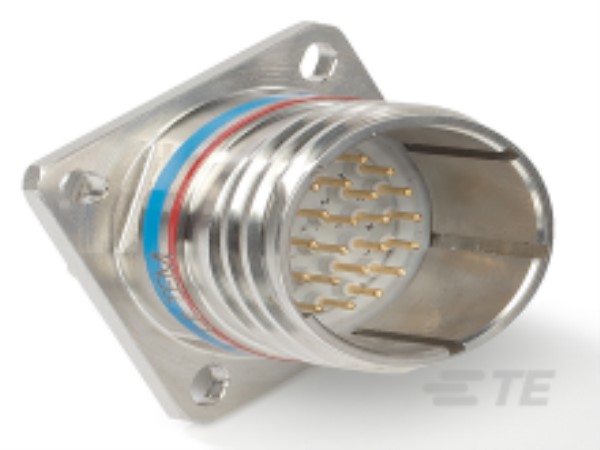

DTS20W15-05SN[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

DTS20W15-05SN[V001]

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: DTS20W1505SNV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS20W15-05SN[V001]
  • Alias/AKA:
    YDTS20W15-05SNV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Circuit Application:
    Power
  • Keying:
    Keyway Polarization N
  • Environmental Protection:
    Yes
  • Polarization Code:
    N
  • Factory Installed Backshell:
    No
  • Number of Signal Positions:
    0
  • Connector Mounting Type:
    Panel
  • Operating Temperature Range:
    -65 – 175 °C, -85 – 347 °F
  • Number of Power Positions:
    5
  • Weight:
    22.7 g, .0501 lb
  • Panel Mount Feature Type:
    Square Flange
  • Hermetically Sealed:
    No
  • Sealable:
    Yes
  • Voltage:
    2300 Vrms
  • Positions Unloaded:
    All
  • Position Locations Omitted:
    All
  • Fluid Resistance:
    Yes
  • Assembly Type:
    Electrical Connector
  • Shielded:
    Yes
  • Reverse Gender:
    No
  • Panel Mount Feature:
    With
  • Product Type:
    Connector
  • Accepts Wire Insulation Diameter Range:
    .065 – .109 in, 1.65 – 2.77 mm
  • Connector System:
    Wire-to-Panel
  • Entry Style:
    Rear Insertion
  • Keying & Polarized Position Locations:
    N
  • Peripheral Seal Material:
    Silicone
  • Wire/Cable Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Durability Rating:
    500 Cycles
  • Mating Retention:
    With
  • Operating Voltage:
    600 VAC, 850 VDC
  • Position Keyed:
    N
  • Flange:
    Square Flange
  • Number of Positions:
    5
  • Shell Plating Material:
    Cadmium, O.D.
  • Contact Type:
    Socket
  • Shell Size:
    D (15)
  • Mating Alignment Type:
    Keyed
  • Assembly Length:
    1.24 in, 31.5 mm
  • Alignment Keyed:
    Clocking
  • Contact Layout:
    15 – 5
  • Connector Style:
    Receptacle
  • Packaging Quantity:
    1
  • Contact Layout Arrangement:
    15 – 5
  • Feedthrough Type:
    No
  • Contact Quantity (Size 16):
    5
  • Wire Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Contact Current Rating (Max):
    13 A
  • Insulation Material:
    Hard Dielectric/Silicone
  • Preloaded:
    No
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Environmental Protection Type:
    Elastomer Sealed
  • Mating Retention Type:
    Triple Start Threaded
  • O-Ring Material:
    Silicone
  • Shell Type:
    Square Flange Receptacle
  • Shell Material:
    Aluminum
  • Circular Connector Shell Size:
    15
  • Shell Base Material:
    Aluminum 6061-T6
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
40
65 Weeks can ship 8/23/27
Backorder
Price (USD)
Qty
Unit Price
40
$519.57
80
$265.37
120
$180.64
160 +
$177.03
Click for Quote
Log in to unlock special pricing
