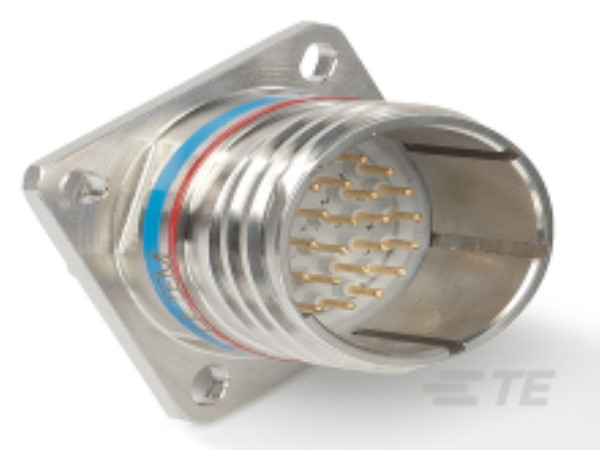

DTS20W13-35SC[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

DTS20W13-35SC[V001]

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: DTS20W1335SCV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS20W13-35SC[V001]
  • Alias/AKA:
    YDTS20W13-35SCV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Number of Signal Positions:
    22
  • Accepts Wire Insulation Diameter Range:
    .03 – .054 in, .76 – 1.37 mm
  • Wire Size:
    28 – 22 AWG, .08 – .33 mm²
  • Assembly Length:
    1.24 in, 31.5 mm
  • Factory Installed Backshell:
    No
  • Panel Mount Feature:
    With
  • Panel Mount Feature Type:
    Square Flange
  • Connector System:
    Wire-to-Panel
  • Fluid Resistance:
    Yes
  • Feedthrough Type:
    No
  • Contact Layout:
    13 – 35
  • Hermetically Sealed:
    No
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Voltage:
    1300 Vrms
  • Circuit Application:
    Signal
  • Insulation Material:
    Hard Dielectric/Silicone
  • Mating Retention Type:
    Triple Start Threaded
  • Flange:
    Square Flange
  • Alignment Keyed:
    Clocking
  • Weight:
    16.7 g, .0369 lb
  • Shell Material:
    Aluminum
  • Operating Voltage:
    400 VAC, 550 VDC
  • Shielded:
    Yes
  • Contact Type:
    Socket
  • Mating Retention:
    With
  • Position Locations Omitted:
    All
  • Wire/Cable Size:
    28 – 22 AWG, .08 – .33 mm²
  • Environmental Protection:
    Yes
  • Peripheral Seal Material:
    Silicone
  • Entry Style:
    Rear Insertion
  • Contact Quantity (Size 22D):
    22
  • Polarization Code:
    C
  • Positions Unloaded:
    All
  • Connector Style:
    Receptacle
  • Position Keyed:
    C
  • Mating Alignment Type:
    Keyed
  • Number of Positions:
    22
  • Preloaded:
    No
  • Operating Temperature Range:
    -65 – 175 °C, -85 – 347 °F
  • Contact Current Rating (Max):
    5 A
  • Assembly Type:
    Electrical Connector
  • Contact Layout Arrangement:
    13 – 35
  • Number of Power Positions:
    22
  • Shell Plating Material:
    Cadmium, O.D.
  • Shell Size:
    C (13)
  • Shell Type:
    Square Flange Receptacle
  • Keying & Polarized Position Locations:
    C
  • Environmental Protection Type:
    Elastomer Sealed
  • O-Ring Material:
    Silicone
  • Sealable:
    Yes
  • Packaging Quantity:
    1
  • Keying:
    Keyway Polarization C
  • Reverse Gender:
    No
  • Durability Rating:
    500 Cycles
  • Product Type:
    Connector
  • Connector Mounting Type:
    Panel
  • Shell Base Material:
    Aluminum 6061-T6
  • Circular Connector Shell Size:
    13
