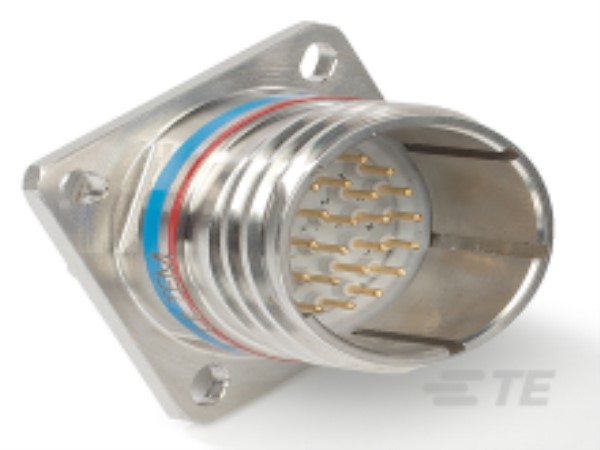

DTS20W13-04PA[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

DTS20W13-04PA[V001]

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Non-Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: DTS20W1304PAV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS20W13-04PA[V001]
  • Alias/AKA:
    YDTS20W13-04PAV001
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Fluid Resistance:
    Yes
  • Operating Voltage:
    600 VAC, 850 VDC
  • Assembly Length:
    1.24 in, 31.5 mm
  • O-Ring Material:
    Silicone
  • Shell Material:
    Aluminum
  • Feedthrough Type:
    No
  • Polarization Code:
    A
  • Panel Mount Feature:
    With
  • Position Keyed:
    A
  • Insulation Material:
    Hard Dielectric/Silicone
  • Circuit Application:
    Power
  • Environmental Protection:
    Yes
  • Environmental Protection Type:
    Elastomer Sealed
  • Contact Layout Arrangement:
    13 – 4
  • Connector System:
    Wire-to-Panel
  • Flange:
    Square Flange
  • Durability Rating:
    500 Cycles
  • Contact Current Rating (Max):
    13 A
  • Number of Positions:
    4
  • Connector Mounting Type:
    Panel
  • Shell Type:
    Square Flange Receptacle
  • Factory Installed Backshell:
    No
  • Contact Type:
    Pin
  • Operating Temperature Range:
    -65 – 175 °C, -85 – 347 °F
  • Mating Alignment Type:
    Keyed
  • Alignment Keyed:
    Clocking
  • Positions Unloaded:
    All
  • Voltage:
    1800 Vrms
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Weight:
    15.3 g, .0338 lb
  • Packaging Quantity:
    1
  • Connector Style:
    Receptacle
  • Assembly Type:
    Electrical Connector
  • Shielded:
    Yes
  • Number of Power Positions:
    4
  • Wire Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Panel Mount Feature Type:
    Square Flange
  • Contact Quantity (Size 16):
    4
  • Wire/Cable Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Product Type:
    Connector
  • Mating Retention Type:
    Triple Start Threaded
  • Hermetically Sealed:
    No
  • Keying & Polarized Position Locations:
    A
  • Mating Retention:
    With
  • Contact Layout:
    13 – 4
  • Shell Plating Material:
    Cadmium, O.D.
  • Reverse Gender:
    No
  • Keying:
    Keyway Polarization A
  • Preloaded:
    No
  • Number of Signal Positions:
    0
  • Peripheral Seal Material:
    Silicone
  • Shell Size:
    C (13)
  • Entry Style:
    Rear Insertion
  • Accepts Wire Insulation Diameter Range:
    .065 – .109 in, 1.65 – 2.77 mm
  • Position Locations Omitted:
    All
  • Sealable:
    Yes
  • Circular Connector Shell Size:
    13
  • Shell Base Material:
    Aluminum 6061-T6
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
25
65 Weeks can ship 8/23/27
Backorder
Price (USD)
Qty
Unit Price
25
$546.51
50
$279.13
75
$190.00
100 +
$186.20
Click for Quote
Log in to unlock special pricing
