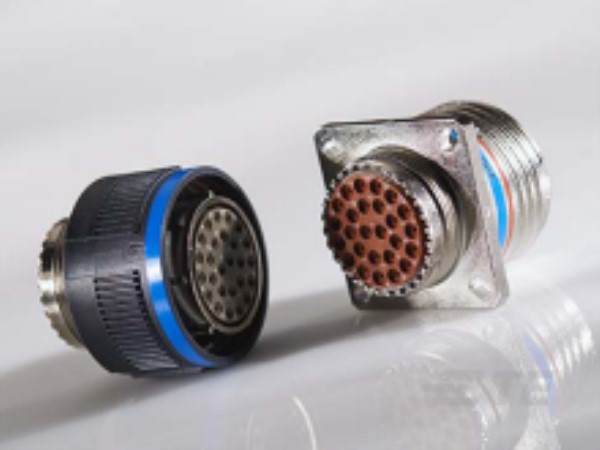

DTS20K09-35PN by te connectivity / deutsch
Image is representational - see mfr. specs

DTS20K09-35PN

TE Connectivity / Deutsch

DTS 20 K 09-35 PN

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Pack Packaging
Certificate of Compliance Guarantee
Description +
DTS 20 K 09-35 PN
Search Keywords: DTS20K0935PN
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS20K09-35PN
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Mating Retention:
    With
  • Mating Alignment Type:
    Keyed
  • Sealable:
    Yes
  • Keying:
    Keyway Polarization N
  • Shielded:
    Yes
  • Product Type:
    Connector
  • Factory Installed Backshell:
    Without
  • Mating Retention Type:
    Threaded
  • Accessory Color:
    Natural
  • Wire/Cable Size:
    28 – 22 AWG, .08 – .33 mm²
  • Connector Mounting Type:
    Panel
  • Connector System:
    Cable-to-Panel
  • Shell Plating Material:
    Passivated Stainless Steel Firewall
  • Environmental Protection Type:
    Elastomer Sealed
  • Number of Signal Positions:
    6
  • Panel Mount Feature Type:
    Flange with Mounting Holes
  • Shell Material:
    Stainless Steel
  • Panel Mount Feature:
    With
  • Number of Power Positions:
    0
  • Wire Size:
    22 – 28 AWG, .33 – .08 mm²
  • Contact Current Rating (Max):
    5 A
  • Durability Rating:
    500 Cycles
  • Shell Type:
    Square Flange Receptacle
  • Preloaded:
    No
  • Insulation Material:
    Hard Dielectric/Silicone
  • Number of Positions:
    6
  • Assembly Type:
    Electrical Connector
  • Polarization Code:
    N
  • Prewired:
    No
  • Contact Layout Arrangement:
    9 – 35
  • Connector Style:
    Receptacle
  • Shell Size:
    9
  • Reverse Gender:
    No
  • Flange:
    Square Flange
  • Hermetically Sealed:
    No
  • Mating Alignment:
    With
  • Termination Method to Wire & Cable:
    Crimp
  • Circuit Application:
    Signal
  • Contact Type:
    Male Contact
  • Alignment Keyed:
    Clocking
  • Operating Temperature Range:
    -65 – 200 °C
  • Circular Connector Shell Size:
    A (09)
  • Shell Base Material:
    Stainless Steel
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
14
9 Weeks can ship 7/22/26
Backorder
Price (USD)
Qty
Unit Price
14
$682.96
27
$361.74
40
$249.32
53 +
$244.33
