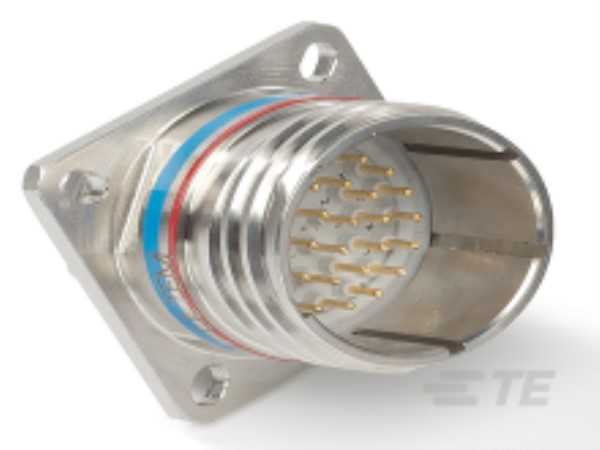

DTS20F09-35SN[V001] by te connectivity / deutsch
Image is representational - see mfr. specs

DTS20F09-35SN[V001]

TE Connectivity / Deutsch

RECP ASSY

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
RECP ASSY
Search Keywords: DTS20F0935SNV001
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DTS20F09-35SN[V001]
  • Alias/AKA:
    YDTS20F09-35SNV001
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Number of Positions:
    6
  • Position Locations Omitted:
    All
  • Number of Signal Positions:
    6
  • Operating Voltage:
    400 VAC, 550 VDC
  • Voltage:
    1300 Vrms
  • Durability Rating:
    500 Cycles
  • Reverse Gender:
    No
  • Circuit Application:
    Signal
  • Feedthrough Type:
    No
  • Environmental Protection:
    Yes
  • Connector Mounting Type:
    Panel
  • Shell Material:
    Aluminum
  • Alignment Keyed:
    Clocking
  • Packaging Quantity:
    1
  • Contact Type:
    Socket
  • Factory Installed Backshell:
    No
  • Contact Layout Arrangement:
    9 – 35
  • Shell Size:
    A (09)
  • Shell Plating Material:
    Nickel
  • Hermetically Sealed:
    No
  • Insulation Material:
    Hard Dielectric/Silicone
  • Contact Layout:
    9 – 35
  • Flange:
    Square Flange
  • Environmental Protection Type:
    Elastomer Sealed
  • Product Type:
    Connector
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Shell Type:
    Square Flange Receptacle
  • Fluid Resistance:
    Yes
  • Accepts Wire Insulation Diameter Range:
    .03 – .054 in, .76 – 1.37 mm
  • Position Keyed:
    N
  • Weight:
    9.5 g, .0209 lb
  • Panel Mount Feature:
    With
  • Polarization Code:
    N
  • Assembly Length:
    1.24 in, 31.5 mm
  • Contact Quantity (Size 22D):
    6
  • Mating Alignment Type:
    Keyed
  • Entry Style:
    Rear Insertion
  • Positions Unloaded:
    All
  • Wire/Cable Size:
    28 – 22 AWG, .08 – .33 mm²
  • Wire Size:
    28 – 22 AWG, .08 – .33 mm²
  • Peripheral Seal Material:
    Silicone
  • Connector Style:
    Receptacle
  • Keying & Polarized Position Locations:
    N
  • Mating Retention:
    With
  • Number of Power Positions:
    6
  • Sealable:
    Yes
  • Preloaded:
    No
  • Keying:
    Keyway Polarization N
  • Connector System:
    Wire-to-Panel
  • Contact Current Rating (Max):
    5 A
  • Shielded:
    Yes
  • Panel Mount Feature Type:
    Square Flange
  • Assembly Type:
    Electrical Connector
  • Mating Retention Type:
    Triple Start Threaded
  • Operating Temperature Range:
    -85 – 392 °C, -65 – 200 °F
  • Shell Base Material:
    Aluminum 6061-T6
  • Circular Connector Shell Size:
    9
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
22
52 Weeks can ship 5/24/27
