DMC-MR30-23BC by te connectivity / deutsch

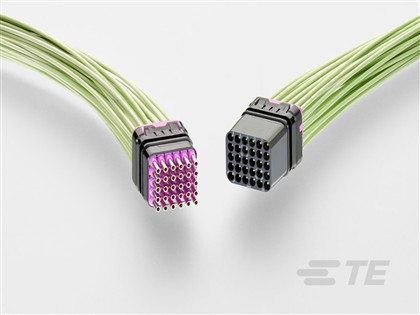

Image is representational - see mfr. specs

DMC-MR30-23BC

TE Connectivity / Deutsch

DMC-MR 30-23 BC

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Pack Packaging
Certificate of Compliance Guarantee
Description +
DMC-MR 30-23 BC
Search Keywords: DMCMR3023BC
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DMC-MR30-23BC
  • Alias/AKA:
    ZPF000000000202892
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    FR
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Operating Voltage:
    1300 VAC
  • Keying:
    B
  • Circuit Application:
    Power & Signal & Data
  • Number of Power Positions:
    0
  • Row-to-Row Spacing:
    .085 in, 2.15 mm
  • Number of Positions:
    30
  • Contact Plating Material:
    Gold over Nickel
  • Centerline (Pitch):
    1 in, 25.4 mm
  • Wire/Cable Size:
    22 – 26 AWG, .4 – .15 mm²
  • Prewired:
    No
  • Contact Retention Type:
    Retention Clip
  • Number of Rows:
    6
  • Wire Size:
    22 – 26 AWG, .4 – .15 mm²
  • Number of Loaded Positions:
    9
  • Connector Type:
    Connector Assembly
  • Strain Relief:
    Without
  • Operating Temperature Range:
    -65 – 175 °C, -85 – 392 °F
  • Contact Size:
    23
  • Number of Cavities:
    30
  • Product Type:
    Connector
  • Boxmount:
    No
  • Insertion Force:
    Standard
  • Sealable:
    Yes
  • Contact Current Rating (Max):
    5 A
  • Termination Method to Wire & Cable:
    Crimp
  • Shape:
    Rectangular
  • Contact Style:
    Crimp
  • Number of Signal Positions:
    30
  • Contact Layout:
    Matrix
  • Module Material:
    Composite
  • Contact Retention:
    Retention Clip
  • Number of Columns:
    6
  • Contact Retention Within Housing:
    With
  • Contact Underplating Material:
    Nickel
  • Contact Retention Type within Housing:
    Retention Clip
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
20
11 Weeks can ship 8/10/26
Backorder
Price (USD)
Qty
Unit Price
20
$42.74
39
$26.98
58
$21.54
77 +
$21.11
Click for Quote
