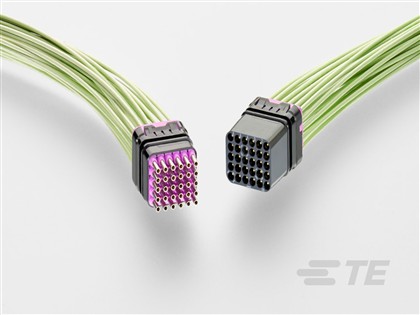

DMC-MR30-23AA by te connectivity / deutsch
Image is representational - see mfr. specs

DMC-MR30-23AA

TE Connectivity / Deutsch

DMC-MR 30-23 AA

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Pack Packaging
Certificate of Compliance Guarantee
Description +
DMC-MR 30-23 AA
Search Keywords: DMCMR3023AA
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    DMC-MR30-23AA
  • Alias/AKA:
    ZPF000000000202887
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8538906000
  • COO:
    FR
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Number of Power Positions:
    0
  • Prewired:
    No
  • Number of Columns:
    6
  • Boxmount:
    No
  • Centerline (Pitch):
    1 in, 25.4 mm
  • Contact Size:
    23
  • Product Type:
    Pin Insert Module
  • Strain Relief:
    Without
  • Contact Retention Type:
    Retention Clip
  • Sealable:
    Yes
  • Number of Positions:
    30
  • Contact Retention:
    Retention Clip
  • Keying:
    A
  • Row-to-Row Spacing:
    .6299 in, 16 mm
  • Contact Layout:
    Matrix
  • Number of Loaded Positions:
    0
  • Contact Plating Material:
    Gold over Nickel
  • Contact Current Rating (Max):
    5 A
  • Number of Cavities:
    30
  • Insertion Force:
    Standard
  • Circuit Application:
    Power & Signal & Data
  • Shape:
    Rectangular
  • Operating Temperature Range:
    -65 – 175 °C, -85 – 392 °F
  • Contact Style:
    Crimp
  • Termination Method to Wire & Cable:
    Crimp
  • Connector Type:
    Connector Assembly
  • Module Material:
    Composite
  • Wire Size:
    22 – 26 AWG, .4 – .15 mm²
  • Number of Signal Positions:
    30
  • Number of Rows:
    5
  • Operating Voltage:
    125 VDC
  • Contact Retention Within Housing:
    With
  • Contact Retention Type within Housing:
    Retention Clip
  • Contact Underplating Material:
    Nickel
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
19
16 Weeks can ship 9/11/26
Backorder
Price (USD)
Qty
Unit Price
19
$35.46
38
$21.82
57
$17.28
76 +
$16.93
Click for Quote
