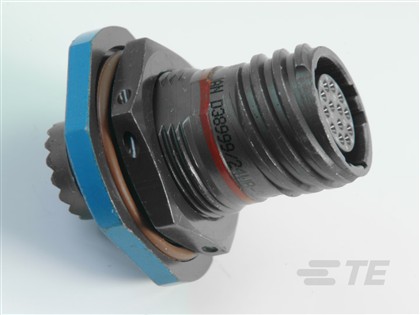

ACT24MC04SN by te connectivity / deutsch
Image is representational - see mfr. specs

ACT24MC04SN

TE Connectivity / Deutsch

JAM NUT RECEPTACLE

+ see all

Datasheet Accessories Notify Me

RoHS Compliant
Bag Packaging
Certificate of Compliance Guarantee
Description +
JAM NUT RECEPTACLE
Search Keywords: ACT24MC04SN
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / Deutsch
  • Part No:
    ACT24MC04SN
  • Alias/AKA:
    YACT24MC04SN000000
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    MX
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Contact Layout Arrangement:
    C04
  • Assembly Length:
    1.3 in, 33 mm
  • Panel Mount Feature:
    With
  • Weight:
    17.6 g, .0389 lb
  • Fluid Resistance:
    Yes
  • Positions Unloaded:
    All
  • Contact Type:
    Socket
  • Packaging Quantity:
    1
  • Mating Retention Type:
    Triple Start Threaded
  • Durability Rating:
    500 Cycles
  • Shell Plating Material:
    Electroless Nickel
  • Contact Current Rating (Max):
    13 A
  • Sealable:
    Yes
  • Environmental Protection Type:
    Elastomer Sealed
  • Entry Style:
    Rear Insertion
  • Accepts Wire Insulation Diameter Range:
    .065 – .109 in, 1.65 – 2.77 mm
  • Assembly Type:
    Electrical Connector
  • Feedthrough Type:
    No
  • O-Ring Material:
    Silicone
  • Preloaded:
    No
  • Product Type:
    Connector
  • Keying:
    Keyway Polarization N
  • Shell Type:
    Jam Nut Receptacle
  • Number of Signal Positions:
    0
  • Position Locations Omitted:
    All
  • Shell Material:
    Composite
  • Alignment Keyed:
    Clocking
  • Wire/Cable Size:
    20 – 16 AWG, .52 – 1.31 mm²
  • Insulation Material:
    Hard Dielectric/Silicone
  • Mating Alignment Type:
    Keyed
  • Mating Retention:
    With
  • Fluid Type:
    Coolanol 25 , M2-V , MIL-DTL-5624 (JP-4,JP-5) , MIL-DTL-83133 (JP-8) , MIL-PRF-23699 , MIL-PRF-5606 , MIL-PRF-7808 , SEA-AMS1424 Type I
  • Panel Mount Feature Type:
    Jam Nut
  • Voltage:
    1800 Vrms
  • Polarization Code:
    N
  • Circuit Application:
    Power
  • Peripheral Seal Material:
    Silicone
  • Number of Power Positions:
    4
  • Connector System:
    Wire-to-Panel
  • Contact Quantity (Size 16):
    4
  • Shell Size:
    C (13)
  • Panel Thickness:
    .062 – .126 in, 1.58 – 3.2 mm
  • Shielded:
    Yes
  • Flange:
    Jam Nut Flange
  • Hermetically Sealed:
    No
  • Operating Voltage:
    600 VAC, 850 VDC
  • Operating Temperature Range:
    -65 – 200 °C, -85 – 392 °F
  • Environmental Protection:
    Yes
  • Reverse Gender:
    No
  • Factory Installed Backshell:
    No
  • Connector Mounting Type:
    Panel
  • Connector Style:
    Receptacle
  • Position Keyed:
    N
  • Number of Positions:
    4
  • Contact Layout:
    C04
Tools/3D Models +
Product Guides +
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
13
18 Weeks can ship 9/18/26
Backorder
Price (USD)
Qty
Unit Price
13
$1,246.66
25
$662.21
38
$444.83
50 +
$435.94
Click for Quote
Log in to unlock special pricing
