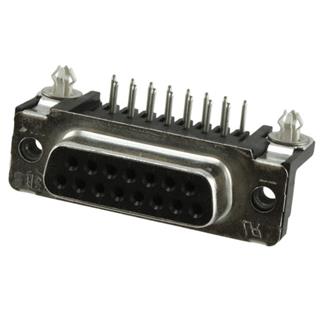

Image is representational - see mfr. specs
5747841-6
TE Connectivity / AMP Brand
D Sub Connector - DB15 - Size 2 - 15 Contacts - Plug - Through Hole - Front Metal Shell - AMPLIMITE HD-20 Series.
Datasheet Accessories Notify Me
RoHS Compliant
Tray Packaging
Certificate of Compliance Guarantee
Description
+
D Sub Connector - DB15 - Size 2 - 15 Contacts - Plug - Through Hole - Front Metal Shell - AMPLIMITE HD-20 Series.
Product Highlights:
- Number of Positions = 15
- Plug
- PCB Mount Angle = Right Angle
- Product Series = HD 20
- With Mating Connector Lock
Search Keywords: 57478416
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:TE Connectivity / AMP Brand
-
Part No:5747841-6
-
Unit of Measure:Per Each
-
RoHS:Yes
-
HTS:8536694040
-
COO:MX
-
ECCN:EAR99
-
Supplier Standard Pack:
104 -
Type:D-Subminiature
-
Body Orientation:Right Angle
-
Mounting:Through Hole
-
Gender:Pin
-
Termination Method:Solder
-
Shell Size:2
-
Number of Contacts:15
-
Contact Plating:Gold over Nickel
-
Operating Temperature:-55 to 105 °C
Tools/3D Models
+
3D PDF
EE ToolBox
Product Guides
+
Product Drawing - PLUG ASSEMBLY, SIZE 2, 15 POSITION, RIGHT ANGLE, FRONT METAL SHELL, .318 SERIES, BOARDLOCKS, AMPLIMITE HD-20
Datasheet
Product Specification - AMPLIMITE HD-20 PCB Mounted Connector
Product Changes
+
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock:
458
Ships today, if you order in
On Order:
1,560
can ship 6/5/26
Minimum Order Quantity:
5
2 Weeks
can ship
5/14/26
Price (USD)
Qty
Unit Price
5
$4.71
50
$3.54
104
$3.33
312
$3.05
520
$2.94
1,040
$2.80
2,600
$2.51
5,096 +
$2.50
