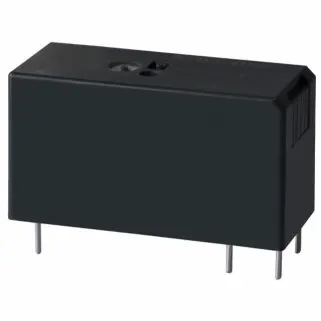

Image is representational - see mfr. specs

te connectivity / amp brand
Authorized Distributor

3-1419108-5

TE Connectivity / AMP Brand

General Purpose Relay - SPST-NO (1 Form A) - 12VDC Coil - 16A Contact - 400VAC Switching - Non Latching Coil - PC Pin - Throug ...

+ see all

Datasheet Accessories Notify Me

RoHS Compliant

Carton Packaging

Certificate of Compliance Guarantee

Description +

General Purpose Relay - SPST-NO (1 Form A) - 12VDC Coil - 16A Contact - 400VAC Switching - Non Latching Coil - PC Pin - Through Hole.

Product Highlights:

RT1 Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 16 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode

Potential Applications:

Search Keywords: 314191085

SPECS +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:

TE Connectivity / AMP Brand
Part No:

3-1419108-5
Unit of Measure:

Per Each
RoHS:

Yes
HTS:

8536490075
COO:

AT
ECCN:

EAR99
Supplier Standard Pack:

500
Relay Construction:

Non-Latching
AC Coil Voltage:

N/A
DC Coil Voltage:

12 V
Contact Arrangement:

SPST-NO
Maximum Current Rating:

16 A
Mounting:

Through Hole
Termination Style:

PC Pin
Push to Test Button:

No
Led Indicator:

No
Operating Temperature:

-40 to 85 °C
Coil Resistance:

360 Ohm

Tools/3D Models +

3D PDF

EE ToolBox

Product Guides +

Datasheet

Agency Approval Document - UL_CERT_E214025_19951102_C1

Agency Approval Document - VDE_CERT_40007571_C1

Agency Approval Document - CQC_CERT_18002197247_C1

Agency Approval Document - CSA_CERT_1142018_C1

Product Specification - Definitions General Purpose Relays

Product Changes +

PCN - 16-OCT-2023 - Case Color Change

Price Match Guarantee - we'll meet or beat any authorized Competitor's published price.

Price Match

This product is discontinued, but still in stock.
This product is NOT RoHS Compliant. See alternative
Different product options available. See alternative
Different packaging options available. See alternative
Possible Replacement options available. See alternative
Item discontinued
End of Life: Final orders must be placed by
Item discontinued

This product is no longer being manufactured but there may be alternatives. We can help you, Contact Us.

Price Match Guarantee

We’ll meet or beat any authorized competitor’s published price for this part.

In Stock: 13,715

Can Ship immediately

On Order:

Manufacturer Stock:

0 can ship

Stock lot only:

Minimum Order Quantity:

MOQ for out of Stock Qty:

Order Increment:

Factory Lead-Time:

14 Weeks can ship 8/5/26

ADD TO CART

Your order may include a combination of full reels and cut tape depending on available stock.

Need guaranteed full reels? Contact Sales

Price (USD)

Qty

Unit Price

$3.57

$1.81

100

$1.79

250

$1.75

500

$1.72

1,000

$1.67

2,500

$1.63

5,000 +

$1.62

Suppliers Standard Package
