2332801-8 by te connectivity / amp brand

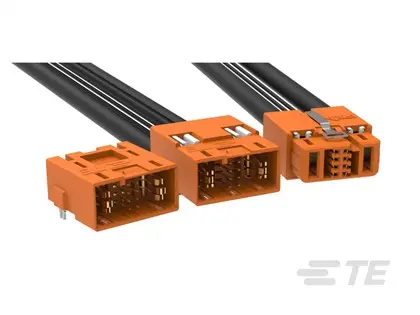

Image is representational - see manufacturer specifications

TE Connectivity / AMP Brand Authorized Distributor

2332801-8

UMP,PLUG,ASSY,PWRSGNL,PANEL,8AWG

+ see all

View Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
UMP,PLUG,ASSY,PWRSGNL,PANEL,8AWG
Search Keywords: 23328018
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / AMP Brand
  • Part No:
    2332801-8
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694040
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    1
  • Packaging Method:
    Tray/Box
  • Wire Contact Termination Area Plating Material:
    Tin over Nickel
  • Number of Signal Positions:
    8
  • Connector & Housing Type:
    Plug
  • Connector Mounting Type:
    Panel Mount
  • UL Flammability Rating:
    UL 94V-0
  • Housing Material:
    Glass Filled PPA
  • Contact Mating Area Plating Material:
    Gold over Nickel
  • Wire Size:
    8 AWG
  • Rectangular Power Connector Type:
    Connector Assembly
  • Sealable:
    No
  • Keying & Polarized Position Locations:
    B
  • Number of Power Positions:
    2
  • Termination Method to Wire & Cable:
    Crimp
  • Number of Positions:
    10
  • Housing Color:
    Orange
  • Glow Wire Rating:
    GWT 750°C (Without Flame)
  • Contact Current Rating (Max):
    35 A
  • Contact Mating Area Plating Material Thickness:
    50 – 100 µin, 1.27 – 2.54 µm
  • Operating Temperature Range:
    -20 – 150 °C, -4 – 302 °F
  • Centerline (Pitch):
    .1 in, 2.54 mm
  • Operating Voltage:
    300 VAC, 300 VDC
  • Contact Type:
    Blade , Pin , Receptacle
  • Row-to-Row Spacing:
    .1 in, 2.54 mm
  • Connector & Contact Terminates To:
    Wire & Cable
  • Circuit Application:
    Power & Signal
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is 2332801-8 RoHS compliant?
Yes, 2332801-8 is RoHS compliant.
What is the lead time for 2332801-8?
The standard lead time for 2332801-8 is approximately 21 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
1000
21 Weeks can ship 3/22/27
Backorder
Request Quote
Price (USD)
Qty
Unit Price
1,000
$73.80
2,000
$37.70
3,000
$25.66
4,000 +
$25.15
Click for Quote
