2332801-6 by te connectivity / amp brand

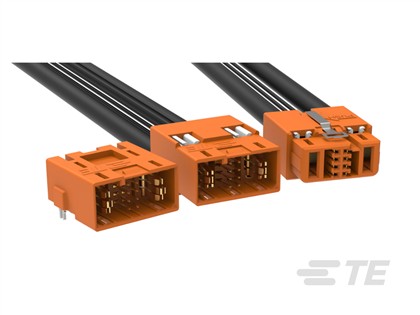

Image is representational - see manufacturer specifications

TE Connectivity / AMP Brand Authorized Distributor

2332801-6

UMP,PLUG,ASSY,PWRSGNL,PANEL,12AWG

+ see all

View Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
UMP,PLUG,ASSY,PWRSGNL,PANEL,12AWG
Search Keywords: 23328016
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / AMP Brand
  • Part No:
    2332801-6
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694040
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Keying & Polarized Position Locations:
    B
  • UL Flammability Rating:
    UL 94V-0
  • Glow Wire Rating:
    GWT 750°C (Without Flame)
  • Connector Mounting Type:
    Panel Mount
  • Contact Mating Area Plating Material:
    Gold over Nickel
  • Sealable:
    No
  • Number of Positions:
    10
  • Contact Current Rating (Max):
    20 A
  • Wire Size:
    12 AWG
  • Connector & Housing Type:
    Plug
  • Rectangular Power Connector Type:
    Connector Assembly
  • Packaging Method:
    Tray/Box
  • Termination Method to Wire & Cable:
    Crimp
  • Number of Signal Positions:
    8
  • Wire Contact Termination Area Plating Material:
    Tin over Nickel
  • Housing Material:
    Glass Filled PPA
  • Number of Power Positions:
    2
  • Housing Color:
    Orange
  • Operating Temperature Range:
    -20 – 150 °C, -4 – 302 °F
  • Operating Voltage:
    300 VAC, 300 VDC
  • Centerline (Pitch):
    .1 in, 2.54 mm
  • Contact Mating Area Plating Material Thickness:
    50 – 100 µin, 1.27 – 2.54 µm
  • Row-to-Row Spacing:
    .1 in, 2.54 mm
  • Contact Type:
    Blade , Pin , Receptacle
  • Circuit Application:
    Power & Signal
  • Connector & Contact Terminates To:
    Wire & Cable
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is 2332801-6 RoHS compliant?
Yes, 2332801-6 is RoHS compliant.
What is the lead time for 2332801-6?
The standard lead time for 2332801-6 is approximately 21 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
1000
21 Weeks can ship 2/18/27
Backorder
Price (USD)
Qty
Unit Price
1,000
$70.86
2,000
$36.19
3,000
$24.63
4,000 +
$24.14
