Available Replacements
RECOMMENDED REPLACEMENT
2176505-7
2176505-7

TE Connectivity / AMP Brand

In Stock: 0

Minimum Order: 1

View Product
2176296-2 by te connectivity / amp brand

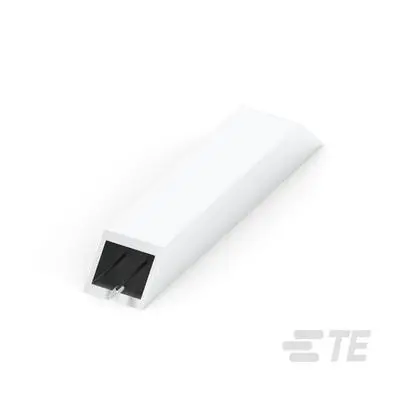

Image is representational - see manufacturer specifications

TE Connectivity / AMP Brand Authorized Distributor

2176296-2

CJN 120W 22R 5% LEAD

+ see all

View Datasheet Accessories

RoHS Compliant
Discontinued & Replaced
Box Packaging
Certificate of Compliance
Description +
CJN 120W 22R 5% LEAD
Search Keywords: 21762962
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    TE Connectivity / AMP Brand
  • Part No:
    2176296-2
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8533290000
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    5
  • Element Type:
    Wire Wound
  • Operating Temperature Range:
    -55 – 200 °C
  • Number of Resistors:
    1
  • Temperature Coefficient:
    ±350 ppm/°C
  • Number of Terminations:
    2
  • Power Rating:
    120 W
  • Packaging Method:
    Loose Piece - Box
  • Resistor Type:
    Power Resistor
  • Resistance Value:
    22 Ω
  • Resistance Class:
    Up to 1kΩ
  • Voltage Rating:
    1 kV
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is 2176296-2 discontinued?
Yes, 2176296-2 from Te Connectivity / Amp Brand is discontinued. OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.
What replaces 2176296-2?
The recommended replacement for 2176296-2 is 2176505-7 from TE Connectivity / AMP Brand, available from OnlineComponents.com.
Is 2176296-2 RoHS compliant?
Yes, 2176296-2 is RoHS compliant.
What is the lead time for 2176296-2?
The standard lead time for 2176296-2 is approximately 18 weeks. In-stock quantities ship from OnlineComponents.com.
  • Item discontinued
