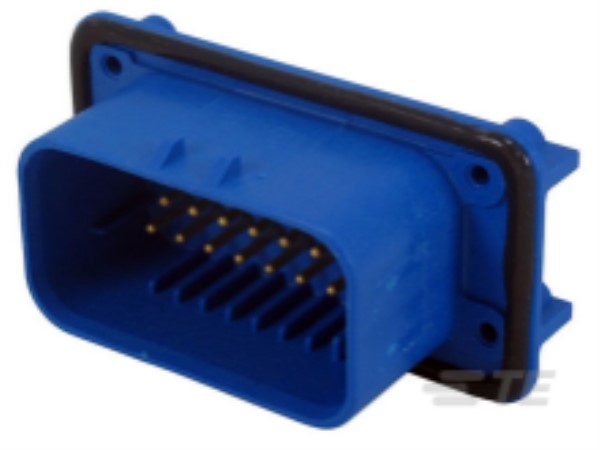

Image is representational - see mfr. specs
1-776087-5
TE Connectivity / AMP Brand
23POS,PIN DIA 1.3,HDR ASSY,90DEG,COD 5
Datasheet Accessories Notify Me
RoHS Compliant
Tray Packaging
Description
+
23POS,PIN DIA 1.3,HDR ASSY,90DEG,COD 5
Search Keywords: 17760875
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:TE Connectivity / AMP Brand
-
Part No:1-776087-5
-
Unit of Measure:Per Each
-
RoHS:Yes
-
HTS:8536694040
-
COO:US
-
ECCN:EAR99
-
Supplier Standard Pack:
40 -
Type:Power
-
Body Orientation:Right Angle
-
Mounting:Through Hole
-
Gender:HDR
-
Number of Contacts:23
-
Termination Method:Solder
-
Maximum Voltage Rating:250 VAC
-
Maximum Current Rating:17/Contact A
-
Operating Temperature:-40 to 125 °C
Tools/3D Models
+
3D PDF
EE ToolBox
Product Guides
+
Product Drawing - HEADER ASSEMBLY, 23 POSITION, RIGHT ANGLE, AMPSEAL
Datasheet
Product Specification - AMPSEAL Automotive Plug Connector and Header Assembly
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock:
6
Ships today, if you order in
Manufacturer Stock:
1,600
can ship
MOQ for In Stock Qty:
5
MOQ for out of Stock Qty:
50
30 Weeks
can ship
12/16/26
Price (USD)
Qty
Unit Price
5
$23.91
10
$23.85
25
$23.79
50
$23.73
100
$14.60
150
$11.56
200 +
$11.33
