Available Replacements

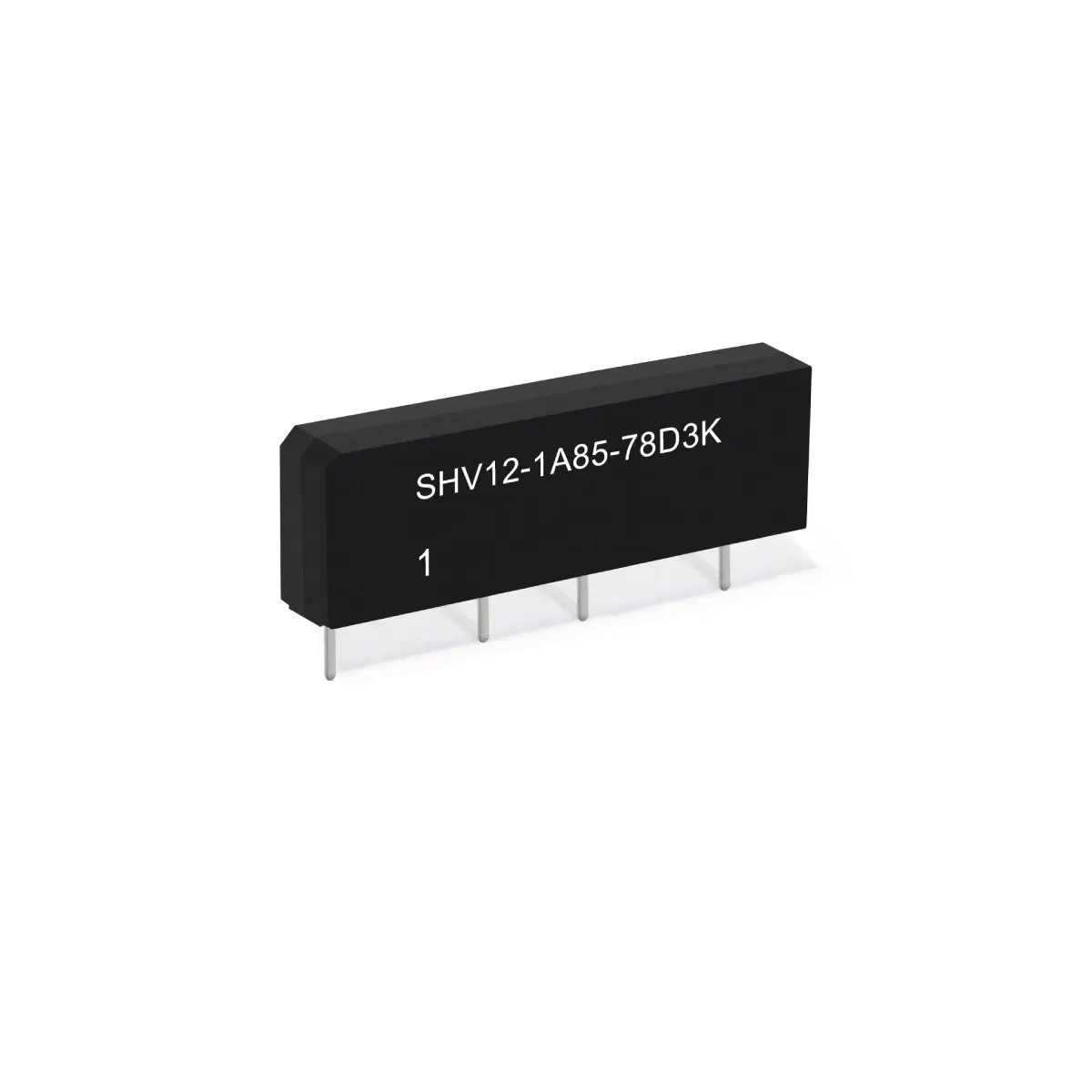

SHV12-1A85-78D3K by standex electronics
Image is representational - see manufacturer specifications

Standex Electronics Authorized Distributor

SHV12-1A85-78D3K

Reed Relay 12VDC 500Ohm 1A SPST-NO(24.13x6.22x8.13)mm THT Dry

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Tube Packaging
Certificate of Compliance
Description +
Reed Relay 12VDC 500Ohm 1A SPST-NO(24.13x6.22x8.13)mm THT Dry
Search Keywords: SHV121A8578D3K
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Standex Electronics
  • Part No:
    SHV12-1A85-78D3K
  • Alias/AKA:
    3312185678
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536410020
  • COO:
    CN
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    120
  • Type:
    Dry
  • DC Coil Voltage:
    12 V
  • Contact Arrangement:
    SPST-NO
  • Maximum AC Switching Voltage:
    1000 V
  • Maximum DC Switching Voltage:
    1 KV
  • Maximum Carry Current:
    2.5 A
  • Maximum Switching Current:
    1 A
  • Maximum Switching Power:
    100 W
  • Terminal Type:
    PC Pin
  • Mounting:
    Through Hole
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
What replaces SHV12-1A85-78D3K?
The recommended replacement for SHV12-1A85-78D3K is SHV12-1A85-78L3K from Standex Electronics, available from OnlineComponents.com.
Is SHV12-1A85-78D3K RoHS compliant?
Yes, SHV12-1A85-78D3K is RoHS compliant.
What is the lead time for SHV12-1A85-78D3K?
The standard lead time for SHV12-1A85-78D3K is approximately 10 weeks. In-stock quantities ship from OnlineComponents.com.

Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
Minimum Order Quantity:
5
10 Weeks can ship 12/16/26
Backorder
Request Quote
Price (USD)
Qty
Unit Price
5
$9.45
25
$8.02
50
$7.61
120
$7.27
360
$7.13
600
$6.93
1,080 +
$6.79
