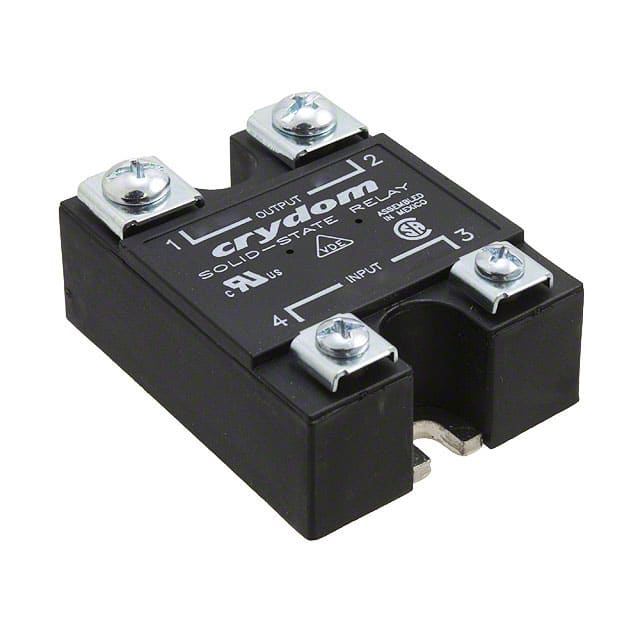

Image is representational - see manufacturer specifications

Sensata / Crydom Authorized Distributor

HA60125

Name: HA60125 Sensata Crydom Solid State Relays
Brand: Sensata Crydom
SKU: 45158989
Availability: InStock

Solid State Relay - 90-280 VAC Control Voltage Range - 125 A Maximum Load Current - 48-660 VAC Operating Voltage Range - Zero ...

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant

EACH Packaging

Certificate of Compliance

Description +

Solid State Relay - 90-280 VAC Control Voltage Range - 125 A Maximum Load Current - 48-660 VAC Operating Voltage Range - Zero Voltage Turn-On - Screw Termination - Panel Mount.

Search Keywords: HA60125

SPECS +

Product Attribute	Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:	Sensata / Crydom
Part No:	HA60125
Unit of Measure:	Per Each
RoHS:	Yes
HTS:	8536490080
COO:	MX
ECCN:	EAR99
Supplier's Standard Package:	10
Output Type:	AC
Maximum Output Voltage:	660 V
Maximum Output Current:	125 A
Output Device:	SCR
Input Type:	AC
Input Voltage:	90(RMS) - 280(RMS) V
Mounting:	Screw
Circuit Arrangement:	1 Form A
Dimension:	58.4 x 45.7 x 23 mm
