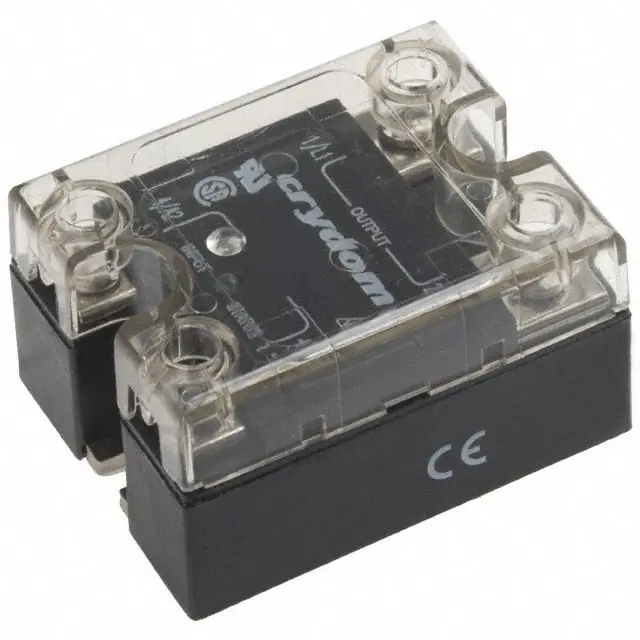

Image is representational - see manufacturer specifications

Sensata / Crydom Authorized Distributor

CWA24125E

Solid State Relay - 18-36 VAC Control - 125 A Max Load - 24-280 VAC Operating - Zero Voltage - LED Status - Panel Mount.

+ see all

View Datasheet Accessories Notify Me

RoHS Compliant
EACH Packaging
Certificate of Compliance
Description +
Solid State Relay - 18-36 VAC Control - 125 A Max Load - 24-280 VAC Operating - Zero Voltage - LED Status - Panel Mount.
Search Keywords: CWA24125E
SPECS +
Product Attribute Attribute Value Select Attribute
Supplier: Sensata / Crydom
Part No: CWA24125E
Unit of Measure: Per Each
RoHS: Yes
HTS: 8536490080
COO: MX
ECCN: EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution. 110
Output Type: AC
Maximum Output Voltage: 280(RMS) V
Maximum Output Current: 125(RMS) A
Output Device: SCR
Input Type: AC
Input Voltage: 18(RMS) - 36(RMS) V
Mounting: Screw
Circuit Arrangement: 1 Form A
Dimension: 45.7 x 58.4 x 33 mm
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is CWA24125E RoHS compliant?
Yes, CWA24125E is RoHS compliant.
What is the lead time for CWA24125E?
The standard lead time for CWA24125E is approximately 18 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
28
18 Weeks can ship 3/24/27
Backorder
Request Quote
Price (USD)
Qty
Unit Price
28
$339.23
55
$176.41
83
$119.36
110 +
$116.98
