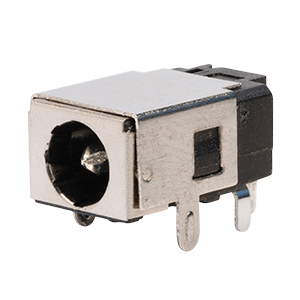

PJ-086H by same sky®
Image is representational - see manufacturer specifications

Same Sky® Authorized Distributor

PJ-086H

1.65 x 4.4 mm, 5.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Reel Packaging
Certificate of Compliance
Description +
1.65 x 4.4 mm, 5.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector
Search Keywords: PJ086H
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Same Sky®
  • Part No:
    PJ-086H
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694040
  • COO:
    CN
  • ECCN:
    EAR99
  • Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    500
  • Type:
    DC Power Jack3706
  • Body Orientation:
    Right Angle3686
  • Mounting:
    Through Hole3696
  • Gender:
    RCP3690
  • Number of Contacts:
    3
  • Termination Method:
    Solder3705
  • Maximum Voltage Rating:
    243694VDC
  • Maximum Current Rating:
    5 A
  • Operating Temperature:
    -25 to 85 °C
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is PJ-086H RoHS compliant?
Yes, PJ-086H is RoHS compliant.
What is the lead time for PJ-086H?
The standard lead time for PJ-086H is approximately 8 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 483
Can Ship immediately Buy all 483 in-stock or the regular minimum order quantity of 500
Stock lot only:
483
Minimum Order Quantity:
500
Order Increment:
500
8 Weeks can ship 12/21/26
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
1
$1.2507
500
$1.1370
1,000
$1.0440
2,500
$0.9640
5,000
$0.9290
7,500
$0.9260
10,000
$0.9240
15,000 +
$0.9220
Reel Package
Click for Quote
