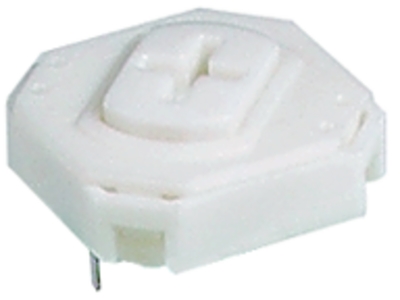

3.14.100.601/0000 by rafi inc
Image is representational - see manufacturer specifications

RAFI INC Authorized Distributor

3.14.100.601/0000

RF 15 N - Tactile switch, non-illuminated, gold contacts

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
RF 15 N - Tactile switch, non-illuminated, gold contacts
Search Keywords: 3141006010000
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    RAFI INC
  • Part No:
    3.14.100.601/0000
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509040
  • COO:
    HU
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    32
  • Dimension:
    15 x 15 x 6.2 mm
  • Mounting:
    PCB Through Hole
  • Pole Throw Configuration:
    SPST
  • Switch Configuration:
    N.O.
  • Actuator Style:
    Button
  • Operating Force:
    3 N
  • Contact Rating @ Voltage:
    2 A
  • Illumination Type:
    N/R
  • Body Orientation:
    Straight
  • Termination Style:
    PC Pins
  • Seal Location:
    N/A
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is 3.14.100.601/0000 RoHS compliant?
Yes, 3.14.100.601/0000 is RoHS compliant.
What is the lead time for 3.14.100.601/0000?
The standard lead time for 3.14.100.601/0000 is approximately 8 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 5,855
Can Ship immediately
Minimum Order Quantity:
32
Order Increment:
32
8 Weeks can ship 12/14/26
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
32
$2.47
64
$2.39
128
$2.31
256
$2.23
512
$2.19
1,024
$2.17
2,528
$2.16
5,024 +
$2.15
