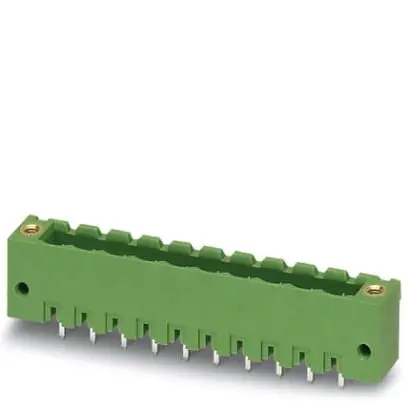

Image is representational - see manufacturer specifications

phoenix contact
Authorized Distributor

Phoenix Contact Authorized Distributor

1776896

Name: 1776896 Phoenix Contact Headers PCB Receptacles
Brand: Phoenix Contact
SKU: 12141796
Availability: InStock

PCB headers - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

Datasheet Assistant

Answers are limited to this part. Verify critical specs against the datasheet.

RoHS Compliant

Packaging

Certificate of Compliance

Description +

PCB headers - nominal current: 12 A - rated voltage (III/2): 320 V - nominal cross section: 2.5 mm² - number of positions: 3 - pitch: 5 mm - color: green - contact surface: Tin - mounting: Wave soldering - pin layout: Linear pinning - solder pin [P]: 3.9 mm

Product Highlights:

Potential Applications:

Search Keywords: 1776896

SPECS +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:

Phoenix Contact
Part No:

1776896
Alias/AKA:

MSTBV-2-5/-3-GF
Unit of Measure:

Per Each
RoHS:

Yes
HTS:

8536694040
COO:

DE
ECCN:

EAR99
Supplier's Standard Package:

250
Type:

Shrouded Header (4 Sides)
Body Orientation:

Straight
Gender:

HDR
Mounting:

Through Hole
Pitch:

5 mm
Number of Contacts:

3
Maximum Voltage Rating:

320 V
Maximum Current Rating:

12 A
Termination Method:

Solder
Operating Temperature:

N/A

Symbol, Footprint, 3D Model

Tools/3D Models +

EE ToolBox

Product Guides +

Datasheet

Frequently Asked Questions

Is 1776896 RoHS compliant?

Yes, 1776896 is RoHS compliant.

What is the lead time for 1776896?

The standard lead time for 1776896 is approximately 22 weeks. In-stock quantities ship from OnlineComponents.com.
