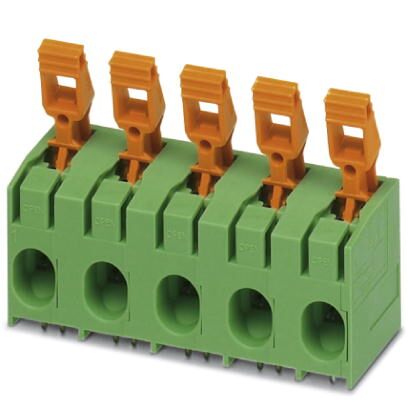

Image is representational - see manufacturer specifications

phoenix contact
Authorized Distributor

Phoenix Contact Authorized Distributor

1770542

Name: 1770542 Phoenix Contact Terminal Blocks
Brand: Phoenix Contact
SKU: 37009371
Availability: InStock

PCB terminal block - nominal current: 76 A - rated voltage (III/2): 1000 V - nominal cross section: 16 mm² - pitch: 15 mm - nu ...

+ see all

View Datasheet Accessories Notify Me

Datasheet Assistant

Answers are limited to this part. Verify critical specs against the datasheet.

RoHS Compliant

Discontinued

Packaging

Certificate of Compliance

Description +

PCB terminal block - nominal current: 76 A - rated voltage (III/2): 1000 V - nominal cross section: 16 mm² - pitch: 15 mm - number of positions: 3 - connection method: Push-lock spring connection - mounting: Wave soldering - conductor/PCB connection direction: 0 ° - color: green - Pin layout: Linear double pinning - Solder pin [P]: 4.5 mm

Product Highlights:

Potential Applications:

Search Keywords: 1770542

SPECS +

Product Attribute

Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:

Phoenix Contact
Part No:

1770542
Alias/AKA:

PLH-16/-3-15
Unit of Measure:

Per Each
RoHS:

Yes
HTS:

8536904000
COO:

SK
ECCN:

EAR99
Supplier Standard Pack:

50
Type:

PC Terminal Block
Mounting:

Through Hole
Gender:

N/A
Termination Method:

Solder
Pitch:

15 mm
Number of Circuits:

3
Maximum Voltage Rating:

1000 V
Maximum Current Rating:

76 A
Wire Size:

4-18 AWG
Operating Temperature:

N/A

Symbol, Footprint, 3D Model

Tools/3D Models +

EE ToolBox

Product Guides +

Datasheet

Frequently Asked Questions

Is 1770542 discontinued?

Yes, 1770542 from Phoenix Contact is discontinued. OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.

Is 1770542 RoHS compliant?

Yes, 1770542 is RoHS compliant.

What is the lead time for 1770542?

The standard lead time for 1770542 is approximately 4 days. In-stock quantities ship from OnlineComponents.com.
