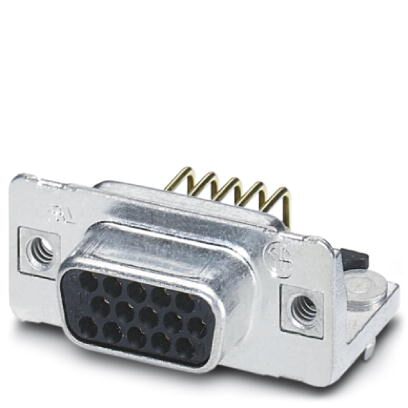

1656136 by phoenix contact
Image is representational - see manufacturer specifications

Phoenix Contact Authorized Distributor

1656136

D-SUB contact insert - shell size 1 - with 15 signal contacts - type of contact socket - for PCB assembly - angled - fixing wi ...

+ see all

View Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
D-SUB contact insert - shell size 1 - with 15 signal contacts - type of contact socket - for PCB assembly - angled - fixing with 4-40 UNC thread and solder pins - for panel mounting frame VS-09-...
Search Keywords: 1656136
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Phoenix Contact
  • Part No:
    1656136
  • Alias/AKA:
    VS-09-BU-DSUB-HD-ER
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694030
  • COO:
    DE
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Type:
    D-Subminiature
  • Body Orientation:
    Right Angle
  • Mounting:
    Through Hole
  • Gender:
    SKT
  • Termination Method:
    Solder
  • Shell Size:
    1
  • Number of Contacts:
    15
  • Contact Plating:
    Gold
  • Operating Temperature:
    -55 to 105 °C
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is 1656136 RoHS compliant?
Yes, 1656136 is RoHS compliant.
What is the lead time for 1656136?
The standard lead time for 1656136 is approximately 14 days. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
Manufacturer Stock:
3 can ship
14 Weeks can ship 12/7/26
ADD TO CART
Price (USD)
Qty
Unit Price
1
$26.81
5 +
$25.47
Click for Quote
