Available Replacements
Non-RoHS Equivalent
DSP1-DC5V
DSP1-DC5V

Panasonic Electronic Components

In Stock: 15

Minimum Order: 1

View Product

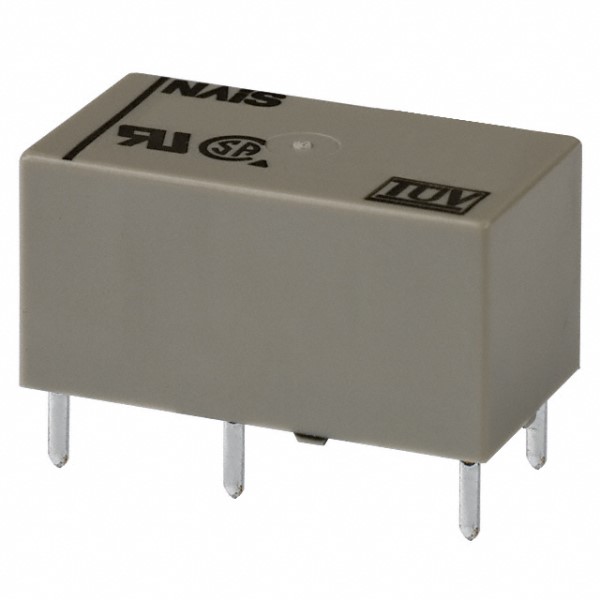

DSP1-DC5V-F by panasonic electronic components
Image is representational - see manufacturer specifications

Panasonic Electronic Components Authorized Distributor

DSP1-DC5V-F

Power Relay - SPST-NO - SPST-NC - 5 VDC - 5 A - DSP Series - Through Hole - Non Latching.

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
Power Relay - SPST-NO - SPST-NC - 5 VDC - 5 A - DSP Series - Through Hole - Non Latching.
Search Keywords: DSP1DC5VF
SPECS +
Product Attribute Attribute Value Select Attribute
Supplier: Panasonic Electronic Components
Part No: DSP1-DC5V-F
Unit of Measure: Per Each
RoHS: Yes
HTS: 8536410020
COO: JP
ECCN: EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution. 50
Relay Construction: Non-Latching
DC Coil Voltage: 5 V
Contact Arrangement: SPST-NO,SPST-NC
Mounting: Through Hole
Termination Style: PC Pin
Push to Test Button: No
Led Indicator: No
Operating Temperature: -40 to 65 °C
Coil Resistance: 83 Ohm
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is DSP1-DC5V-F RoHS compliant?
Yes, DSP1-DC5V-F is RoHS compliant.
What is the lead time for DSP1-DC5V-F?
The standard lead time for DSP1-DC5V-F is approximately 20 weeks. In-stock quantities ship from OnlineComponents.com.

Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 720
Can Ship immediately
On Order:
2,500   can ship 1/13/27
Minimum Order Quantity:
50
Order Increment:
50
20 Weeks can ship 3/25/27
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
50
$2.48
100
$2.42
250
$2.34
500
$2.33
1,000
$2.32
2,500 +
$2.31
Supplier's Standard Package
Click for Quote
