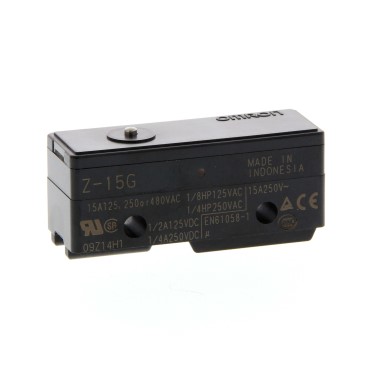

Z15G by omron automation
Image is representational - see manufacturer specifications

Omron Automation Authorized Distributor

Z15G

General purpose basic switch, pin plunger, SPDT, 15 A, solder terminals

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
General purpose basic switch, pin plunger, SPDT, 15 A, solder terminals
Search Keywords: Z15G
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Omron Automation
  • Part No:
    Z15G
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509040
  • COO:
    ID
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    1
  • Mounting:
    Through Hole
  • Pole Throw Configuration:
    SPDT
  • Switch Configuration:
    N.O./N.C.
  • Actuator Material/Style:
    Stainless Steel/Pin Plunger
  • Contact Rating @ Voltage:
    186.42@(CSA/UL) A
  • Maximum Movement Differential:
    0.05 mm
  • Operating Force:
    3.43 N
  • Termination Style:
    Solder
  • Dimension:
    49.2 x 17.45 x 22.7 mm
  • Body Orientation:
    Straight
  • IP Rating:
    IP00
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is Z15G RoHS compliant?
Yes, Z15G is RoHS compliant.
What is the lead time for Z15G?
The standard lead time for Z15G is approximately 19 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 1
Ships today, if you order in
19 Weeks can ship 3/8/27
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
1 +
$14.20
Click for Quote
Log in to unlock special pricing
