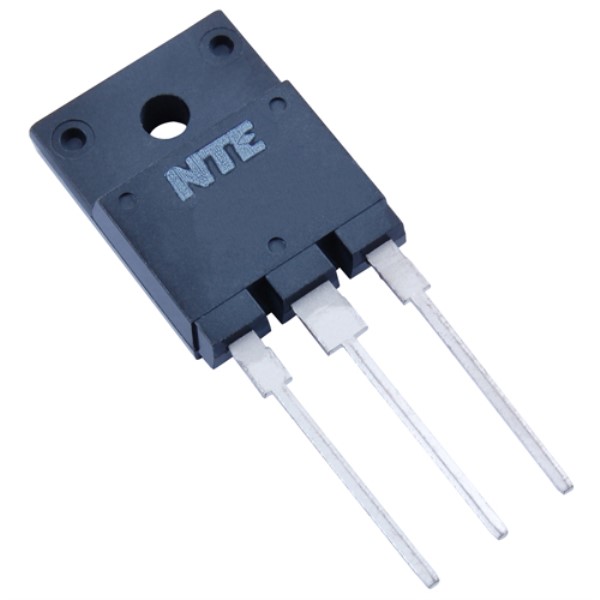

Image is representational - see mfr. specs
NTE2559
NTE Electronics
Transistor NPN Silicon Darlington 120V IC=16A TO-3pml Case Motor Relay Driver Compl To NTE2560
Datasheet Accessories Notify Me
RoHS Compliant
Description
+
Transistor NPN Silicon Darlington 120V IC=16A TO-3pml Case Motor Relay Driver Compl To NTE2560
Search Keywords: NTE2559
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:NTE Electronics
-
Part No:NTE2559
-
Unit of Measure:Per Each
-
RoHS:Yes
-
HTS:8541290095
-
COO:JP
-
ECCN:EAR99
-
Supplier Standard Pack:
1 -
Family:NTE2559
-
Maximum Base Emitter Saturation Voltage:2.5@16mA@8A V
-
Maximum Collector Emitter Voltage:120 V
-
Maximum Collector Base Voltage:120 V
-
Maximum Collector Emitter Saturation Voltage:1.5@16mA@8A V
-
Dimension:16 x 5.6 x 14 mm
Tools/3D Models
+
-
EE ToolBox
Product Guides
+
Datasheet
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock:
6
Can Ship immediately
Minimum Order Quantity:
5
99 Weeks
can ship
4/3/28
Price (USD)
Qty
Unit Price
5
$9.51
25
$7.49
50
$7.38
100
$7.26
250
$6.64
500
$6.53
1,000
$6.44
2,500 +
$6.11
