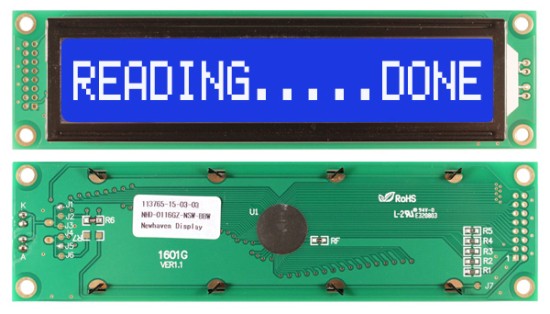

Image is representational - see manufacturer specifications
Newhaven Display
NHD-0116GZ-NSW-BBW
LCD Character Display - 1 x 16 Character - STN- Blue - White Backlight - 151.0 x 40.0 mm
View Datasheet Accessories Notify Me
RoHS Compliant
BULK Packaging
Certificate of Compliance
Description
+
LCD Character Display - 1 x 16 Character - STN- Blue - White Backlight - 151.0 x 40.0 mm
Search Keywords: NHD0116GZNSWBBW
SPECS
+
| Product Attribute | Attribute Value Select Attribute |
|---|---|
| Supplier: | Newhaven Display |
| Part No: | NHD-0116GZ-NSW-BBW |
| Unit of Measure: | Per Each |
| RoHS: | Yes |
| HTS: | 8524919000 |
| COO: | CN |
| ECCN: | EAR99 |
Supplier's Standard Package:
|
1 |
| Display Format: | 1 x 16 Characters |
| Display Type: | STN- BLUE |
| Display Mode: | Transmissive |
| Text Color: | White |
| Background Color: | Blue |
| Backlight: | LED - White |
| Character Size: | 14.54 x 6.0 mm |
| Dimension: | 151 x 40 x 13 mm |
| Interface: | 8-Bit Parallel |
| Supply Voltage: | 5 V |
| Operating Temperature: | -20 to +70 °C |
Tools/3D Models
+
-
EE ToolBox
Datasheet
Newhaven Display International, Inc. Introduces Full Color OLED Displays.
Frequently Asked Questions
Is NHD-0116GZ-NSW-BBW RoHS compliant?
Yes, NHD-0116GZ-NSW-BBW is RoHS compliant.
What is the lead time for NHD-0116GZ-NSW-BBW?
The standard lead time for NHD-0116GZ-NSW-BBW is approximately 16 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
25
16 Weeks
can ship
3/2/27
Price (USD)
Qty
Unit Price
25
$34.53
50
$21.25
75
$16.82
100 +
$16.48
Click for Quote
Log in
to unlock special pricing
