Available Replacements
RECOMMENDED REPLACEMENT
Image is representational - see manufacturer specifications
NEUTRIK
NLT4FP-BAG
STX Series - 4 pole female chassis connector, black-chrome metal housing - solder contacts The speakON STX Series was especi ...
View Datasheet Ask the Datasheet Accessories
RoHS Compliant
Discontinued & Replaced
Certificate of Compliance
Description
+

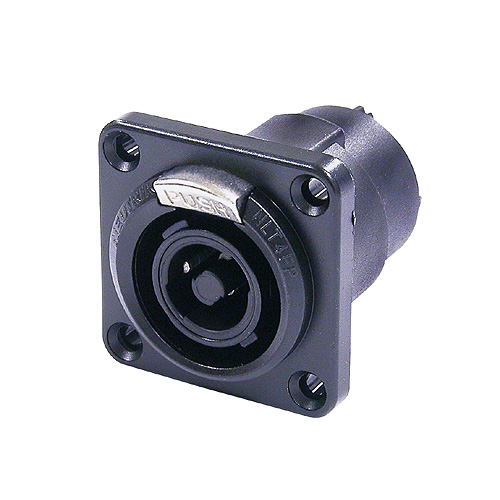

STX Series - 4 pole female chassis connector, black-chrome metal housing - solder contacts
The speakON STX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STX S
Product Highlights:
- Current rating 40 Amp continuous, 50 Amp audio with 50% duty cycle
- Robust and durable all metal housing
- Sealing ring provides weatherproof IP54 rating
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Mate with all available Speakon products
Search Keywords: NLT4FPBAG
SPECS
+
| Product Attribute | Attribute Value Select Attribute |
|---|---|
| Supplier: | NEUTRIK |
| Part No: | NLT4FP-BAG |
| Unit of Measure: | Per Each |
| RoHS: | Yes |
| HTS: | 8536694030 |
| COO: | LI |
| ECCN: | EAR99 |
Supplier's Standard Package:
|
25 |
| Type: | Loudspeaker Connector |
| Gender: | F |
| Body Orientation: | Straight |
| Mounting: | Panel Mount |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 4 |
| Contact Plating: | Silver |
| Termination Method: | Solder |
| Operating Temperature: | -30 to 80 °C |
Tools/3D Models
+
-
EE ToolBox
Datasheet
Neutrik Meaningful Part Numbering System
Learn more about NEUTRIK High Impact, Flexible and Scalable eSports Solutions
Frequently Asked Questions
Is NLT4FP-BAG discontinued?
Yes, NLT4FP-BAG from Neutrik is discontinued. OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.
What replaces NLT4FP-BAG?
The recommended replacement for NLT4FP-BAG is NLT4FPXX-BAG from NEUTRIK, available from OnlineComponents.com.
Is NLT4FP-BAG RoHS compliant?
Yes, NLT4FP-BAG is RoHS compliant.
What is the lead time for NLT4FP-BAG?
The standard lead time for NLT4FP-BAG is approximately 3 weeks. In-stock quantities ship from OnlineComponents.com.
