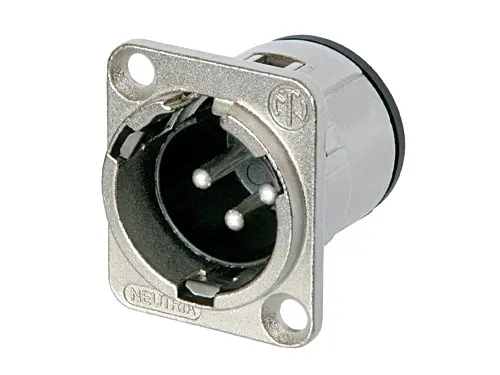

NC3MD-V by neutrik
Image is representational - see manufacturer specifications

NEUTRIK Authorized Distributor

NC3MD-V

D Series - 3 pole male receptacle, vertical PCB mount - Nickel housing - silver contacts Universal D-size metal body XLR pan ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
D Series - 3 pole male receptacle, vertical PCB mount - Nickel housing - silver contacts Universal D-size metal body XLR panel mount series for pcb mount applications. Insert is removable from shell for ease assembling. UL recognized component.
Product Highlights:
  • D-shape metal shell
  • Optimal RF protection using 3 shield contacts.
  • Insert is removable from rear of connector and locked into place by internal latch - permitting assembling and testing of pcb before assembling into housing
  • Front or rear panel mount
Search Keywords: NC3MDV
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    NEUTRIK
  • Part No:
    NC3MD-V
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694030
  • COO:
    HU
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    100
  • Type:
    XLR Connector
  • Gender:
    M
  • Body Orientation:
    Straight
  • Mounting:
    Through Hole
  • Housing Material:
    Zinc Die Cast
  • Number of Contacts:
    3
  • Contact Plating:
    Silver over Nickel
  • Termination Method:
    Solder
  • Operating Temperature:
    -30 to 80 °C
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is NC3MD-V RoHS compliant?
Yes, NC3MD-V is RoHS compliant.
What is the lead time for NC3MD-V?
The standard lead time for NC3MD-V is approximately 3 weeks. In-stock quantities ship from OnlineComponents.com.
