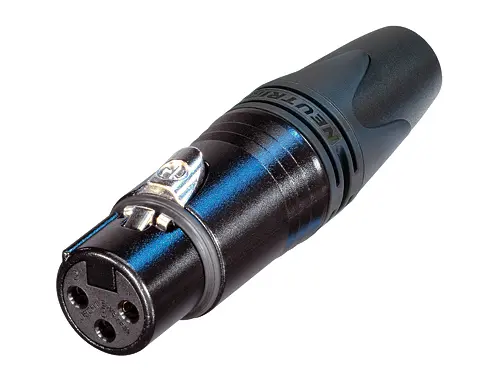

Image is representational - see manufacturer specifications

NEUTRIK Authorized Distributor

NC3FXX-14-BAG-D

Name: NC3FXX-14-BAG-D Neutrik Audio Video
Brand: Neutrik
SKU: 11966783
Availability: InStock

XX-14 Series - 3 pole female cable connector for 8 mm - 10 mm cable O.D. with black metal housing and silver contacts Specia ...

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant

Bulk Packaging

Certificate of Compliance

Description +

XX-14 Series - 3 pole female cable connector for 8 mm - 10 mm cable O.D. with black metal housing and silver contacts Special version of the XLR cable connector XX Series for large cable diameters. Incorporating all features of the XX Series. Bulk pac

Product Highlights:

Unique cage design of female contact for low contact resistance and high integrity
Female contact incorporates a solder barrier to prevent solder running into the contact mating area
Female connector with improved solid metal latch which is larger and easier to handle
Additional ground spring contacts for better shell ground continuity
Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
Boot with polyurethane gland gives high protection to cable bending stresses
Colored rings and boots available for coding or identification
Sleek and ergonomic design - valuable and handy
Rugged zinc diecast shell, longlasting and dependable

Search Keywords: NC3FXX14BAGD

SPECS +

Product Attribute	Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:	NEUTRIK
Part No:	NC3FXX-14-BAG-D
Unit of Measure:	Per Each
RoHS:	Yes
HTS:	8536694020
COO:	LI
ECCN:	EAR99
Supplier's Standard Package:	100
Type:	XLR Connector
Gender:	F
Body Orientation:	Straight
Mounting:	Cable Mount
Number of Contacts:	3
Termination Method:	Solder
