NC3FXCC by neutrik

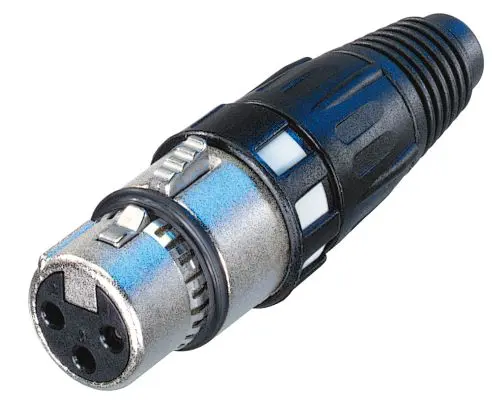

Image is representational - see manufacturer specifications

NEUTRIK Authorized Distributor

NC3FXCC

XCC Series - 3 pole female cable connector - RF-protected - gold contacts Cable O.D.: 5.4 - 6.2 mm Crimp Size Shield: 6.5 mm ...

+ see all

View Datasheet Accessories Notify Me

RoHS Compliant
Discontinued
Packaging
Certificate of Compliance
Description +
XCC Series - 3 pole female cable connector - RF-protected - gold contacts Cable O.D.: 5.4 - 6.2 mm Crimp Size Shield: 6.5 mm (hex) The XCC XLR cable connector Series  with circumferential shield contact provides excellent RF-protection to transmit dig
Product Highlights:
  • 3 pole cable connector with a circumferential shield contact for best EMI protection
  • XCCR coding ring to indicate digital AES signals included
  • Rugged zinc diecast shell, long lasting and durable
  • Chuck type strain relief system for secure clamping of cables
  • Boot with rubber gland gives high protection against bending stresses
Search Keywords: NC3FXCC
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    NEUTRIK
  • Part No:
    NC3FXCC
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694020
  • COO:
    LI
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    50
  • Type:
    IP40 XLR Connector
  • Gender:
    F
  • Body Orientation:
    Straight
  • Mounting:
    Cable Mount
  • Housing Material:
    Polyamide 6/6
  • Number of Contacts:
    3
  • Contact Plating:
    Gold Alloy Over Nickel
  • Termination Method:
    N/A
  • Operating Temperature:
    -30 to 80 °C
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is NC3FXCC discontinued?
Yes, NC3FXCC from Neutrik is discontinued (end-of-life March 2025). OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.
Is NC3FXCC RoHS compliant?
Yes, NC3FXCC is RoHS compliant.
What is the lead time for NC3FXCC?
The standard lead time for NC3FXCC is approximately 3 weeks. In-stock quantities ship from OnlineComponents.com.
