505070-1022 by molex / waldom

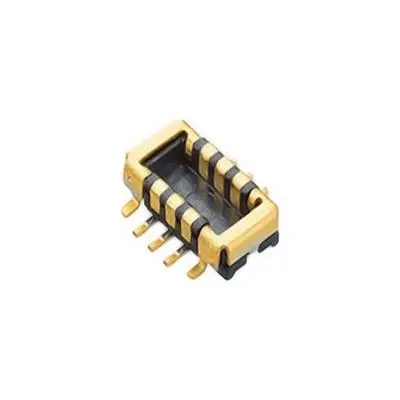

Image is representational - see manufacturer specifications

Molex / Waldom Authorized Distributor

505070-1022

SlimStack Board-to-Board Plug - 10 Circuits - 0.35mm Pitch - SSB RP Series - 0.60 or 0.70mm Mated Height - 2.00mm Mated Width ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Reel Packaging
Certificate of Compliance
Description +
SlimStack Board-to-Board Plug - 10 Circuits - 0.35mm Pitch - SSB RP Series - 0.60 or 0.70mm Mated Height - 2.00mm Mated Width - Gold Plating - Armor Nail - 0.15mm Fitting Nail Width - Pick and Place - Black.
Search Keywords: 5050701022
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Molex / Waldom
  • Part No:
    505070-1022
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694040
  • COO:
    JP
  • ECCN:
    EAR99
  • Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    8000
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is 505070-1022 RoHS compliant?
Yes, 505070-1022 is RoHS compliant.
What is the lead time for 505070-1022?
The standard lead time for 505070-1022 is approximately 11 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
Minimum Order Quantity:
8000
Order Increment:
8000
11 Weeks can ship 12/24/26
Backorder
Price (USD)
Qty
Unit Price
8,000
$0.253
160,000
$0.226
400,000
$0.220
800,000 +
$0.206
Reel Package
Click for Quote
Log in to unlock special pricing
