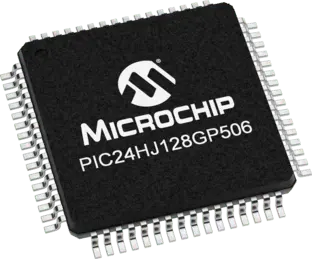

PIC24HJ128GP506-I/PT by microchip technology
Image is representational - see manufacturer specifications

Microchip Technology Authorized Distributor

PIC24HJ128GP506-I/PT

PIC 24H microcontroller - MCU 16 bit - 3 V to 3.6 V - Pins: 64 - Package type: TQFP 64 – Speed 40 MHz – Flash 128 KB – SRAM 08 ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
TRAY Packaging
Certificate of Compliance
This product may require extra documentation. Shipping may be delayed 1-2 days.
Description +
PIC 24H microcontroller - MCU 16 bit - 3 V to 3.6 V - Pins: 64 - Package type: TQFP 64 – Speed 40 MHz – Flash 128 KB – SRAM 08 Kbytes - I/O: 53 – A/D: 10 bit with 18 channels – 05 Timers – 02 x UART – 02 x SPI – 02 x I2C – CAN - 360,600 mg – SMD/SMT - ICS
Search Keywords: PIC24HJ128GP506IPT
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Microchip Technology
  • Part No:
    PIC24HJ128GP506-I/PT
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8542310020
  • COO:
    TH
  • ECCN:
    3A991.a.2
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    160
  • ADC Resolution:
    12 bit
  • Number of Programmable I/Os:
    53
  • Program Memory Size:
    128 KB
  • Program Memory Type:
    Flash
  • RAM Size:
    8 KB
  • Operating Temperature:
    -40 to 85 °C
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Product Changes +
Frequently Asked Questions
Is PIC24HJ128GP506-I/PT RoHS compliant?
Yes, PIC24HJ128GP506-I/PT is RoHS compliant.
What is the lead time for PIC24HJ128GP506-I/PT?
The standard lead time for PIC24HJ128GP506-I/PT is approximately 29 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
On Order:
480   can ship 12/10/26
MOQ for In Stock Qty:
5
MOQ for out of Stock Qty:
40
29 Weeks can ship 5/13/27
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
5
$10.86
10
$10.83
25
$10.81
40
$10.78
80
$8.09
120
$7.55
160 +
$7.40
Supplier's Standard Package
