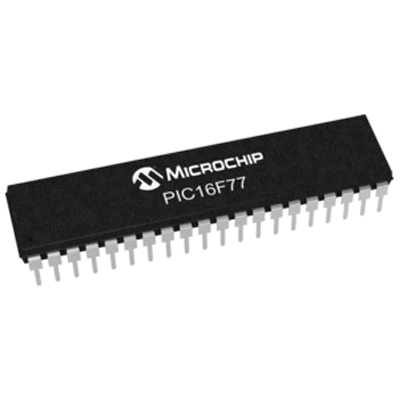

PIC16F77-I/P by microchip technology
Image is representational - see manufacturer specifications

Microchip Technology Authorized Distributor

PIC16F77-I/P

PIC 16 microcontroller - MCU 8 bit - RISC architecture - 2 V to 5.5 V - Pins: 40 - Package type: PDIP 40 – Speed 20MHz - Flash ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
TUBE Packaging
Certificate of Compliance
Description +
PIC 16 microcontroller - MCU 8 bit - RISC architecture - 2 V to 5.5 V - Pins: 40 - Package type: PDIP 40 – Speed 20MHz - Flash 8192 words – SRAM 368 Bytes – I/O: 33 – A/D: 8 bits with 08 channels – 2x CCP PWM – 03 Timers – USART - SSP - I2C - SPI - 6 g –
Search Keywords: PIC16F77IP
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Microchip Technology
  • Part No:
    PIC16F77-I/P
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8542310015
  • COO:
    TH
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    10
  • Number of Programmable I/Os:
    33
  • Program Memory Type:
    Flash
  • Program Memory Size:
    14 KB
  • ADC Resolution:
    8 bit
  • Operating Temperature:
    -40 to 85 °C
  • RAM Size:
    368 B
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is PIC16F77-I/P RoHS compliant?
Yes, PIC16F77-I/P is RoHS compliant.
What is the lead time for PIC16F77-I/P?
The standard lead time for PIC16F77-I/P is approximately 5 days. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
Manufacturer Stock:
3,229 can ship
Minimum Order Quantity:
10
Order Increment:
10
5 Weeks can ship 9/18/26
ADD TO CART
Price (USD)
Qty
Unit Price
10
$7.44
30
$7.14
50
$6.95
100
$6.77
250
$6.52
500
$6.50
1,000 +
$6.44
