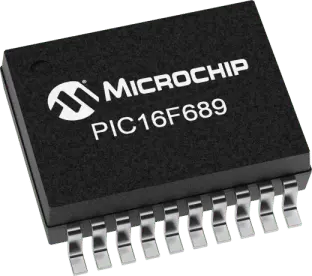

PIC16F689-I/SS by microchip technology
Image is representational - see manufacturer specifications

Microchip Technology Authorized Distributor

PIC16F689-I/SS

PIC 16 microcontroller - MCU 8 bit - RISC architecture - 5V - Automotive - Pins: 20 - Package type: SSOP 20 – Speed 20MHz - Fl ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
TUBE Packaging
Certificate of Compliance
Description +
PIC 16 microcontroller - MCU 8 bit - RISC architecture - 5V - Automotive - Pins: 20 - Package type: SSOP 20 – Speed 20MHz - Flash 4096 words – SRAM 128 Bytes – EEPROM 256 Bytes – I/O: 18 – A/D: 10 bits with 12 channels – Comparators 2 – 02 Timers – I2C –
Search Keywords: PIC16F689ISS
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Microchip Technology
  • Part No:
    PIC16F689-I/SS
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8542310015
  • COO:
    PH
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    67
  • ADC Resolution:
    10 bit
  • Program Memory Size:
    7 KB
  • Operating Temperature:
    -40 to 85 °C
  • Program Memory Type:
    Flash
  • Number of Programmable I/Os:
    18
  • RAM Size:
    256 B
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is PIC16F689-I/SS RoHS compliant?
Yes, PIC16F689-I/SS is RoHS compliant.
What is the lead time for PIC16F689-I/SS?
The standard lead time for PIC16F689-I/SS is approximately 18 days. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 670
Can Ship immediately
Minimum Order Quantity:
67
Order Increment:
67
18 Weeks can ship 12/21/26
ADD TO CART
Price (USD)
Qty
Unit Price
67
$2.28
134
$2.27
268
$2.20
536
$2.14
1,005
$2.07
2,546
$2.06
5,025
$2.05
7,504 +
$2.03
Supplier's Standard Package
