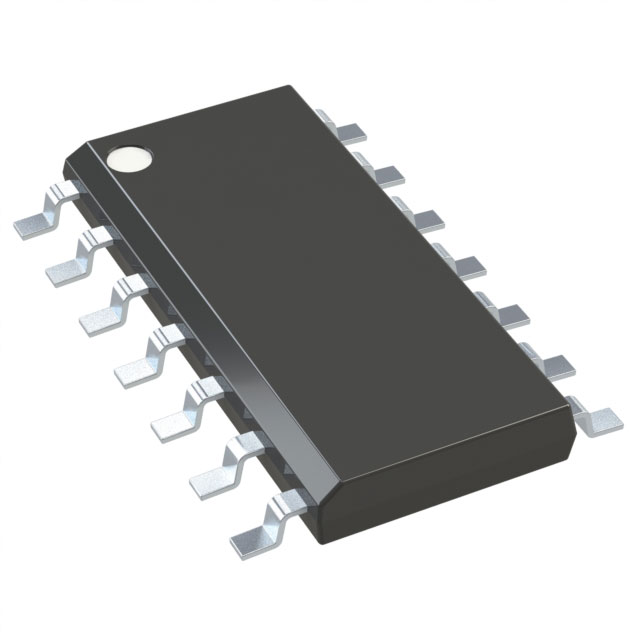

Image is representational - see mfr. specs
PIC16F684-E/SL
Microchip Technology
MCU 8-bit PIC16 PIC RISC 3.5KB Flash 2.5V/3.3V/5V Automotive 14-Pin SOIC N Tube
Datasheet Accessories Notify Me
RoHS Compliant
TUBE Packaging
Description
+
MCU 8-bit PIC16 PIC RISC 3.5KB Flash 2.5V/3.3V/5V Automotive 14-Pin SOIC N Tube
Search Keywords: PIC16F684ESL
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:Microchip Technology
-
Part No:PIC16F684-E/SL
-
Unit of Measure:Per Each
-
RoHS:Yes
-
HTS:8542310015
-
COO:TH
-
ECCN:EAR99
-
Supplier Standard Pack:
57 -
Operating Temperature:-40 to 125 °C
-
Number of Programmable I/Os:12
-
RAM Size:128 B
-
Program Memory Size:3.5 KB
-
ADC Resolution:10 bit
-
Program Memory Type:Flash
Tools/3D Models
+
-
EE ToolBox
Product Guides
+
Datasheet
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
Manufacturer Stock:
6,768
can ship
MOQ for out of Stock Qty:
86
7 Weeks
can ship
7/20/26
Price (USD)
Qty
Unit Price
86
$3.24
171
$2.44
257
$2.28
342 +
$2.23
