Available Replacements
Alternative Packaging
PIC16F1503T-I/ST
PIC16F1503T-I/ST

Microchip Technology

In Stock: 2,500

Minimum Order: 250

View Product

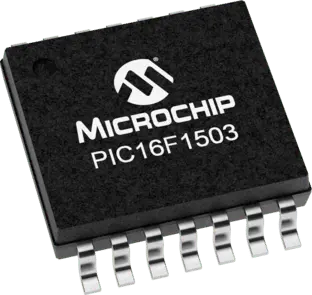

PIC16F1503-I/ST by microchip technology
Image is representational - see manufacturer specifications

Microchip Technology Authorized Distributor

PIC16F1503-I/ST

14-Pin Flash - 8-Bit Microcontroller - 2.3V-5.5V - 20MHz - Industrial Temperature - TSSOP Package

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
TUBE Packaging
Certificate of Compliance
This product may require extra documentation. Shipping may be delayed 1-2 days.
Description +
14-Pin Flash - 8-Bit Microcontroller - 2.3V-5.5V - 20MHz - Industrial Temperature - TSSOP Package
Search Keywords: PIC16F1503IST
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Microchip Technology
  • Part No:
    PIC16F1503-I/ST
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8542310015
  • COO:
    PH
  • ECCN:
    3A991.a.2
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    96
  • ADC Resolution:
    10 bit
  • Operating Temperature:
    -40 to 85 °C
  • Number of Programmable I/Os:
    11
  • RAM Size:
    128 B
  • Program Memory Size:
    3.5 KB
  • Program Memory Type:
    Flash
Symbol, Footprint, 3D Model
Tools/3D Models +
Product Guides +
Frequently Asked Questions
Is PIC16F1503-I/ST RoHS compliant?
Yes, PIC16F1503-I/ST is RoHS compliant.
What is the lead time for PIC16F1503-I/ST?
The standard lead time for PIC16F1503-I/ST is approximately 16 days. In-stock quantities ship from OnlineComponents.com.

Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 960
Can Ship immediately
MOQ for In Stock Qty:
96
MOQ for out of Stock Qty:
192
Order Increment:
96
16 Weeks can ship 12/7/26
ADD TO CART
Price (USD)
Qty
Unit Price
96
$1.05
192
$1.04
384
$1.03
576
$1.02
768 +
$1.01
Supplier's Standard Package
