CMB-103-27G3N-B-J by littelfuse / carling technologies

Image is representational - see manufacturer specifications

Littelfuse / Carling Technologies Authorized Distributor

CMB-103-27G3N-B-J

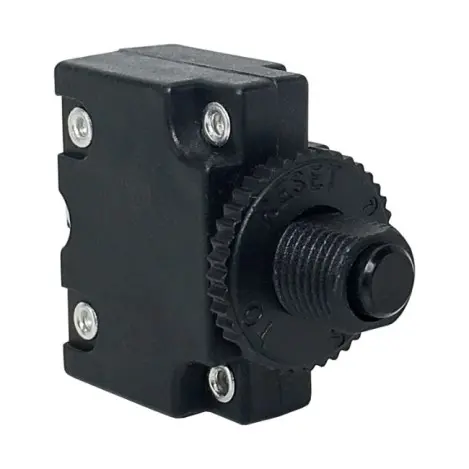

Name: CMB-103-27G3N-B-J Littelfuse Carling Technologies Circuit Breakers
Brand: Littelfuse Carling Technologies
SKU: 16973431
Availability: BackOrder

1-pole - Miniature Push-To-Reset Button - 125-250 VAC/ 32 VDC 10 amp circuit breaker - interrupting capacity Screw 8-32 - 90 ...

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant

Packaging

Certificate of Compliance

Description +

1-pole - Miniature Push-To-Reset Button - 125-250 VAC/ 32 VDC 10 amp circuit breaker - interrupting capacity Screw 8-32 - 90 degree bend terminals 3/8" 27 UNS Front Panel Plastic Bushing with Round Plastic Nut UL 1077 Recognized cUL UL 1500 Recognized

Search Keywords: CMB10327G3NBJ

SPECS +

Product Attribute	Attribute Value Select Attribute
Products found: 0 Show Similar
Supplier:	Littelfuse / Carling Technologies
Part No:	CMB-103-27G3N-B-J
Unit of Measure:	Per Each
RoHS:	Yes
HTS:	8536308000
COO:	TW
ECCN:	EAR99
Supplier's Standard Package:	500
Type:	Thermal
Voltage Rating:	125,250,32 VAC\|VAC\|VDC
Number of Poles:	1
Current Rating:	10 A
Terminal Design:	Screw
Operating Temperature:	-10 to 60 °C
Mounting:	Panel Mount
