ZMCJM9L0L by littelfuse / c-k

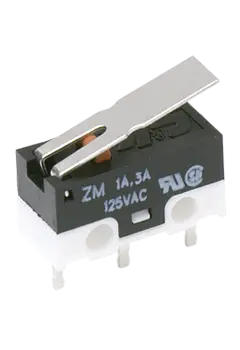

Image is representational - see manufacturer specifications

Littelfuse / C&K Authorized Distributor

ZMCJM9L0L

Subminiature Snap-acting Switch

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
TRAY Packaging
Certificate of Compliance
Description +
Subminiature Snap-acting Switch
Search Keywords: ZMCJM9L0L
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Littelfuse / C&K
  • Part No:
    ZMCJM9L0L
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    853650
  • COO:
    CN
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    100
  • Mounting:
    PCB Mount
  • Pole Throw Configuration:
    SPDT
  • Switch Configuration:
    N.O./N.C.
  • Actuator Material/Style:
    N/A/Nylon 6/6/Leaf Lever
  • Contact Rating @ Voltage:
    0.2@60VDC A
  • Maximum Movement Differential:
    N/A
  • Operating Force:
    1.47 N
  • Termination Style:
    PC Pins
  • Dimension:
    13.68 x 12.8 x 5.8 mm
  • Body Orientation:
    Right Angle
  • IP Rating:
    N/A
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is ZMCJM9L0L RoHS compliant?
Yes, ZMCJM9L0L is RoHS compliant.
What is the lead time for ZMCJM9L0L?
The standard lead time for ZMCJM9L0L is approximately 9 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 2,710
Can Ship immediately
Minimum Order Quantity:
100
Order Increment:
100
9 Weeks can ship 12/25/26
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
100
$1.96
300
$1.89
500
$1.86
1,000
$1.82
2,500
$1.77
5,000 +
$1.73
