ZMA03A150L11PC by littelfuse / c-k

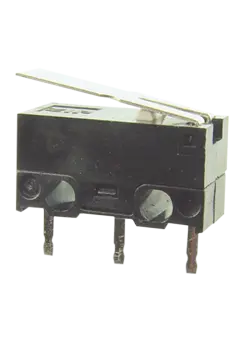

Image is representational - see manufacturer specifications

Littelfuse / C&K Authorized Distributor

ZMA03A150L11PC

Subminiature Snap-acting Switch

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
TRAY Packaging
Certificate of Compliance
Description +
Subminiature Snap-acting Switch
Search Keywords: ZMA03A150L11PC
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Littelfuse / C&K
  • Part No:
    ZMA03A150L11PC
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    853650
  • COO:
    CN
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    100
  • Mounting:
    PCB Mount
  • Pole Throw Configuration:
    SPDT
  • Switch Configuration:
    N.O./N.C.
  • Actuator Material/Style:
    N/A/Nylon 6/6/Straight Lever
  • Contact Rating @ Voltage:
    3@125VAC 24VDC@(cUL/UL) A
  • Maximum Movement Differential:
    N/A
  • Operating Force:
    0.38 N
  • Termination Style:
    PC Pins
  • Dimension:
    16.85 x 5.8 x 13.08 mm
  • Body Orientation:
    Straight
  • IP Rating:
    N/A
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is ZMA03A150L11PC RoHS compliant?
Yes, ZMA03A150L11PC is RoHS compliant.
What is the lead time for ZMA03A150L11PC?
The standard lead time for ZMA03A150L11PC is approximately 9 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
125
9 Weeks can ship 12/25/26
Backorder
Request Quote
Price (USD)
Qty
Unit Price
125
$2.30
250
$1.73
375
$1.62
500 +
$1.58
