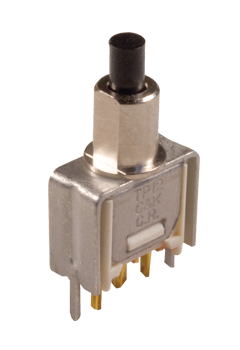

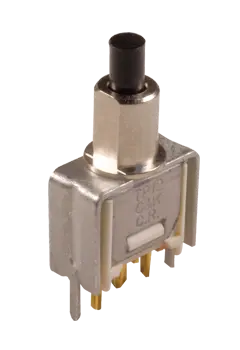

TP21SHCQE by littelfuse / c-k
Image is representational - see manufacturer specifications

Littelfuse / C&K Authorized Distributor

TP21SHCQE

Tiny Pushbutton Switches

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Discontinued
Bag Packaging
Certificate of Compliance
Description +
Tiny Pushbutton Switches
Search Keywords: TP21SHCQE
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Littelfuse / C&K
  • Part No:
    TP21SHCQE
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509031
  • COO:
    VN
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    200
  • Mounting:
    Panel Mount/Through Hole
  • Pole Throw Configuration:
    DPST
  • Bushing Type:
    Threaded
  • Switch Configuration:
    OFF Mom
  • Contact Rating @ Voltage:
    1A@120VAC 28 VDC
  • Actuator Style:
    Round Plunger
  • Illumination:
    N/R
  • Terminal Type:
    PC Pins
  • Body Orientation:
    Straight
  • Dimension:
    8.13 x 9.14 x 18.17 mm
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is TP21SHCQE discontinued?
Yes, TP21SHCQE from Littelfuse / C-K is discontinued. OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.
Is TP21SHCQE RoHS compliant?
Yes, TP21SHCQE is RoHS compliant.
What is the lead time for TP21SHCQE?
The standard lead time for TP21SHCQE is approximately 8 weeks. In-stock quantities ship from OnlineComponents.com.

  • This product is discontinued, but still in stock.

Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 189
Can Ship immediately
Minimum Order Quantity:
10
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
10
$25.49
25
$25.11
50
$24.74
100
$15.22
150
$12.05
200 +
$11.81
Supplier's Standard Package
