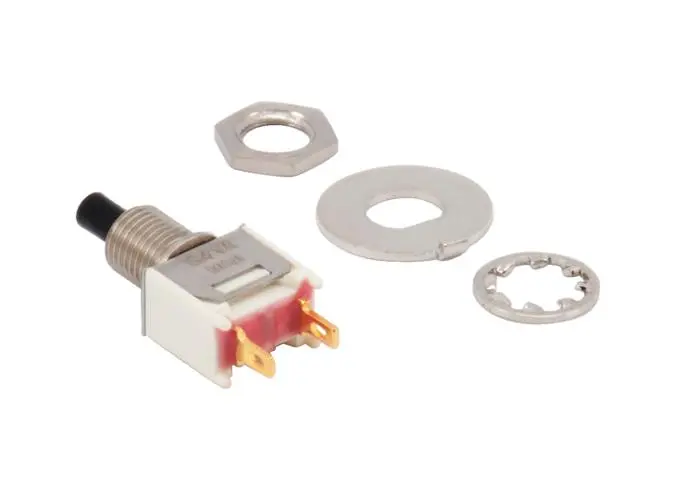

Image is representational - see mfr. specs
TP11SHZBE
Littelfuse/C&K
Tiny Pushbutton Switches
Datasheet Accessories Notify Me
RoHS Compliant
BULK Packaging
Certificate of Compliance Guarantee
Description
+
Tiny Pushbutton Switches
Search Keywords: TP11SHZBE
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:Littelfuse/C&K
-
Part No:TP11SHZBE
-
Unit of Measure:Per Each
-
RoHS:Yes
-
HTS:853650
-
COO:VN
-
ECCN:EAR99
-
Supplier Standard Pack:
200 -
Mounting:Panel Mount
-
Pole Throw Configuration:SPST
-
Bushing Type:Threaded
-
Switch Configuration:OFF Mom
-
Contact Rating @ Voltage:0.4A@20VAC 20 VDC
-
Actuator Style:Round Plunger
-
Illumination:N/R
-
Terminal Type:Solder
-
Body Orientation:Straight
-
Dimension:8.13 x 6.1 x 22.23 mm
Tools/3D Models
+
-
EE ToolBox
Product Guides
+
Product Drawing
Datasheet
PCN - 15-Sep-2019 - Move Of Selected Production Lines To Vietnam
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock:
1,144
Can Ship immediately
Minimum Order Quantity:
5
8 Weeks
can ship
6/23/26
Price (USD)
Qty
Unit Price
5
$9.14
25
$7.72
50
$7.32
200
$6.61
400
$6.32
600
$6.16
1,000
$5.96
2,600 +
$5.94
Click for Quote
Log in
to unlock special pricing
Tariffs may apply for U.S. shipments
