Available Replacements
ROHs Equivalent
TP11SH9APE
TP11SH9APE

Littelfuse / C&K

In Stock: 0

Minimum Order: 5

View Product

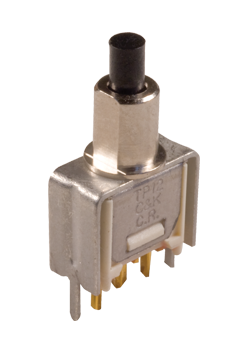

TP11SH9AKE by littelfuse / c-k
Image is representational - see manufacturer specifications

Littelfuse / C&K Authorized Distributor

TP11SH9AKE

Tiny Pushbutton Switches

+ see all

View Datasheet Accessories

RoHS Non-Compliant
Discontinued
Packaging
Certificate of Compliance
Description +
Tiny Pushbutton Switches
Search Keywords: TP11SH9AKE
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Littelfuse / C&K
  • Part No:
    TP11SH9AKE
  • Unit of Measure:
    Per Each
  • RoHS:
    No
  • HTS:
    8536509031
  • COO:
    CN
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    1
  • Mounting:
    Through Hole
  • Pole Throw Configuration:
    SPST
  • Bushing Type:
    Unthreaded
  • Switch Configuration:
    OFF Mom
  • Contact Rating @ Voltage:
    0.4A@20VAC 20 VDC
  • Actuator Style:
    Round Plunger
  • Illumination:
    N/R
  • Terminal Type:
    PC Pins
  • Body Orientation:
    Right Angle
  • Dimension:
    8.13 x 6.1 mm
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is TP11SH9AKE discontinued?
Yes, TP11SH9AKE from Littelfuse / C-K is discontinued. OnlineComponents.com is an authorized distributor and may have remaining stock or a recommended replacement for it.
Is TP11SH9AKE RoHS compliant?
No, TP11SH9AKE is not RoHS compliant.
What is the lead time for TP11SH9AKE?
The standard lead time for TP11SH9AKE is approximately 13 weeks. In-stock quantities ship from OnlineComponents.com.
