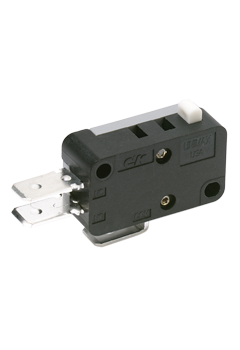

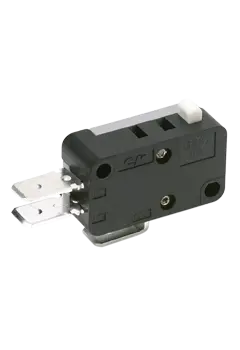

Image is representational - see manufacturer specifications
Littelfuse / C&K
TMCGD6ST2540C
Miniature Snap-acting Switch
View Datasheet Accessories Notify Me
RoHS Compliant
Bag Packaging
Certificate of Compliance
Description
+
Miniature Snap-acting Switch
Search Keywords: TMCGD6ST2540C
SPECS
+
-
Product AttributeAttribute Value Select Attribute
-
Supplier:Littelfuse / C&K
-
Part No:TMCGD6ST2540C
-
Unit of Measure:Per Each
-
RoHS:Yes
-
HTS:8536509040
-
COO:CN
-
ECCN:EAR99
-
Supplier's Standard Package:
1 -
Mounting:Through Hole
-
Pole Throw Configuration:SPDT
-
Switch Configuration:N.O./N.C.
-
Actuator Material/Style:Thermoplastic/Lever
-
Contact Rating @ Voltage:248.57 A
-
Maximum Movement Differential:1.78 mm
-
Operating Force:0.29 N
-
Termination Style:Quick Connect
-
Dimension:53.8 x 10.2 x 21.43 mm
-
Body Orientation:Straight
-
IP Rating:N/A
Tools/3D Models
+
-
EE ToolBox
Product Guides
+
Product Drawing
Datasheet
Frequently Asked Questions
Is TMCGD6ST2540C RoHS compliant?
Yes, TMCGD6ST2540C is RoHS compliant.
What is the lead time for TMCGD6ST2540C?
The standard lead time for TMCGD6ST2540C is approximately 10 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
10 Weeks
can ship
1/1/27
Price (USD)
Qty
Unit Price
1
$2.00
25
$1.96
50
$1.92
100
$1.89
500
$1.85
1,000 +
$1.81
Click for Quote
Log in
to unlock special pricing
