PTS840GKPSMTRLFS by littelfuse / c-k

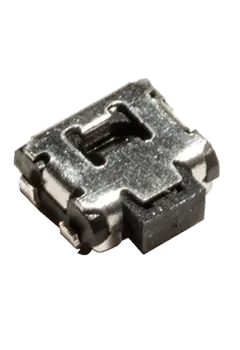

Image is representational - see manufacturer specifications

Littelfuse / C&K Authorized Distributor

PTS840GKPSMTRLFS

Microminiature SMT Side Actuated

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
REEL Packaging
Certificate of Compliance
Description +
Microminiature SMT Side Actuated
Search Keywords: PTS840GKPSMTRLFS
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Littelfuse / C&K
  • Part No:
    PTS840GKPSMTRLFS
  • Alias/AKA:
    Y97NS13B5ABFP
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    853650
  • COO:
    CN
  • ECCN:
    EAR99
  • Reel Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    3500
  • Dimension:
    4.7mm x 3.75mm x 1.35 mm
  • Mounting:
    Surface Mount
  • Pole Throw Configuration:
    SPST
  • Switch Configuration:
    N.O.
  • Actuator Style:
    Button
  • Operating Force:
    2.16 N
  • Contact Rating @ Voltage:
    0.05@12VDC A
  • Illumination Type:
    N/R
  • Body Orientation:
    Right Angle
  • Termination Style:
    Gull Wing
  • Seal:
    N/A
  • Seal Location:
    N/A
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is PTS840GKPSMTRLFS RoHS compliant?
Yes, PTS840GKPSMTRLFS is RoHS compliant.
What is the lead time for PTS840GKPSMTRLFS?
The standard lead time for PTS840GKPSMTRLFS is approximately 10 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 66,500
Can Ship immediately
Minimum Order Quantity:
3500
Order Increment:
3500
10 Weeks can ship 1/4/27
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
3,500
$0.3221
7,000
$0.3078
10,500
$0.2996
17,500
$0.2891
28,000
$0.2794
52,500 +
$0.2699
