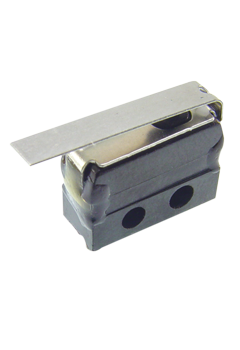

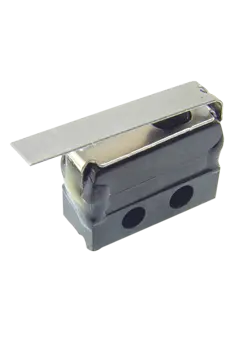

MMGGF5W2L by littelfuse / c-k
Image is representational - see manufacturer specifications

Littelfuse / C&K Authorized Distributor

MMGGF5W2L

Subminiature Precision Snap-acting Switch

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
Packaging
Certificate of Compliance
Description +
Subminiature Precision Snap-acting Switch
Search Keywords: MMGGF5W2L
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Littelfuse / C&K
  • Part No:
    MMGGF5W2L
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536509040
  • COO:
    CN
  • ECCN:
    EAR99
  • Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution.
    1
  • Mounting:
    PCB Mount
  • Pole Throw Configuration:
    SPDT
  • Switch Configuration:
    N.O./N.C.
  • Actuator Material/Style:
    N/A/N/A/Phenolic/Leaf Roller Lever
  • Contact Rating @ Voltage:
    1@125VAC 30VDC A
  • Maximum Movement Differential:
    0.3 mm
  • Operating Force:
    1.67 N
  • Termination Style:
    PC Pins
  • Dimension:
    18.05mm x 18.49mm x 5.08 mm
  • Body Orientation:
    Right Angle
  • IP Rating:
    N/A
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is MMGGF5W2L RoHS compliant?
Yes, MMGGF5W2L is RoHS compliant.
What is the lead time for MMGGF5W2L?
The standard lead time for MMGGF5W2L is approximately 16 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 0
MOQ for out of Stock Qty:
30
16 Weeks can ship 2/19/27
Backorder
Request Quote
Price (USD)
Qty
Unit Price
30
$93.96
60
$49.74
90
$35.00
120 +
$34.30
Click for Quote
