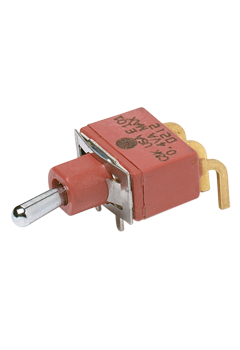

E105SD1ALE by littelfuse / c-k
Image is representational - see manufacturer specifications

Littelfuse / C&K Authorized Distributor

E105SD1ALE

Sealed Miniature Toggle Switch

+ see all

View Datasheet Accessories Notify Me

RoHS Compliant
TRAY Packaging
Certificate of Compliance
Description +
Sealed Miniature Toggle Switch
Search Keywords: E105SD1ALE
SPECS +
  • Product Attribute
    Attribute Value Select Attribute
  • Supplier:
    Littelfuse / C&K
  • Part No:
    E105SD1ALE
  • Unit of Measure:
    Per Each
  • RoHS:
    Yes
  • HTS:
    8536694040
  • COO:
    VN
  • ECCN:
    EAR99
  • Supplier Standard Pack: This information is provided for customers who prefer to buy in multiples of the Manufacturer’s Standard Package quantity. Minimum Order Quantities and Required Order Multiples are presented with our price and availability information.
    80
  • Pole Throw Configuration:
    1P2T (SPDT)
  • Switch Configuration:
    (On) Off (On)
  • Contact Rating @ Voltage:
    0.4@20VAC 20VDC A
  • Actuator Style:
    Round Lever
  • Mounting:
    PC Mount with Bracket
  • Thread Size:
    N/R
  • Body Orientation:
    Right Angle
  • Terminal Type:
    PC Pins
  • Dimension:
    12.7 x 32.59 x 6.6 mm
  • Operating Temperature:
    -30 to 85 °C
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
What replaces E105SD1ALE?
The recommended replacement for E105SD1ALE is E105SD1ARE from Littelfuse / C&K, available from OnlineComponents.com.
Is E105SD1ALE RoHS compliant?
Yes, E105SD1ALE is RoHS compliant.
What is the lead time for E105SD1ALE?
The standard lead time for E105SD1ALE is approximately 12 days. In-stock quantities ship from OnlineComponents.com.

Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 109
Can Ship immediately
MOQ for In Stock Qty:
5
MOQ for out of Stock Qty:
20
12 Weeks can ship 11/18/26
ADD TO CART
Price (USD)
Qty
Unit Price
5
$16.38
10
$14.31
20
$14.17
40
$13.25
60
$12.83
80 +
$12.70
