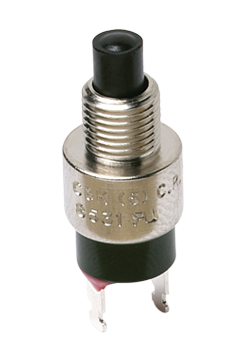

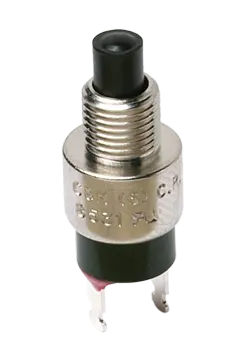

Image is representational - see manufacturer specifications

Littelfuse / C&K Authorized Distributor

8533MCQE2

The 8533MCQE2 is a subminiature, single-pole single-throw (SPST) normally closed momentary pushbutton switch with a contact ra ...

+ see all

View Datasheet Ask the Datasheet Accessories Notify Me

RoHS Compliant
TRAY Packaging
Certificate of Compliance
Description +
The 8533MCQE2 is a subminiature, single-pole single-throw (SPST) normally closed momentary pushbutton switch with a contact rating of 1A.
Search Keywords: 8533MCQE2
SPECS +
Product Attribute Attribute Value Select Attribute
Supplier: Littelfuse / C&K
Part No: 8533MCQE2
Unit of Measure: Per Each
RoHS: Yes
HTS: 853650
COO: VN
ECCN: EAR99
Supplier's Standard Package: The item count, length, weight, or volume contained in the supplier’s original packaging for efficient storage, handling, and distribution. 80
Mounting: Panel Mount/Through Hole
Pole Throw Configuration: SPST
Bushing Type: Threaded
Switch Configuration: ON Mom
Contact Rating @ Voltage: 1A@120VAC 28 VDC
Actuator Style: Round Plunger
Illumination: N/R
Terminal Type: PC Pins
Body Orientation: Straight
Dimension: 9.53 x 9.53 x 23.07 mm
Symbol, Footprint, 3D Model
Tools/3D Models +
Frequently Asked Questions
Is 8533MCQE2 RoHS compliant?
Yes, 8533MCQE2 is RoHS compliant.
What is the lead time for 8533MCQE2?
The standard lead time for 8533MCQE2 is approximately 47 weeks. In-stock quantities ship from OnlineComponents.com.
Price Match Guarantee
We’ll meet or beat any authorized competitor’s published price for this part.
In Stock: 346
Can Ship immediately
Minimum Order Quantity:
5
47 Weeks can ship 10/14/27
ADD TO CART
Request Quote
Price (USD)
Qty
Unit Price
5
$10.04
25
$9.32
80
$7.99
160
$7.97
320
$7.95
560
$7.05
1,040
$6.77
2,560 +
$6.76
